Crush Guard - Installation - 24V to 12V Converter Installation
The purpose of this Tech Doc is to help with Installing the 24V to 12V Converter
Overview
The Model6252 EQSS Crush Guard has been designed to operate using a 12VDC power source. If the
crush guard is installed on a machine with a 24VDC power source, the EQSS 24V to 12V Converter
(PO001023) will need to be installed into the systems wire harness.
Installation
Position the 24V to 12V converter inside the operator control box near the crush guard M23 circular
connector, fasten the converter to the control box using the supplied M6 nuts and bolts.

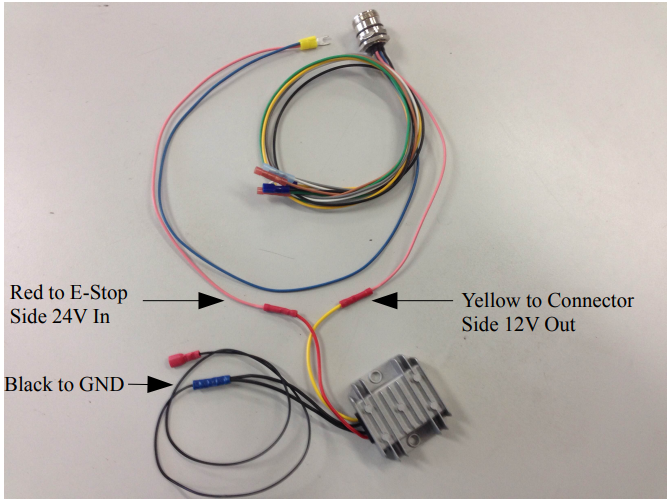

Locate the Pink wire in the Crush Guard loom and splice in the 24V to 12V converter inline. The red wire
from the converter attaches to the pink wire going to the E-Stop. The Yellow wire from the converter attaches
to the Pink wire going to the Crush Guard M23 connector. Finally connect the Black wire from the converter
to the ground point using the spade connector.
