Crush Guard - Installation - Genie ALC500/ALC1000 Installation Overview
This Tech Doc shows the Installation Overview on the ALC500/ALC1000 Boom Lift
The purpose of the Model6252 Crush Guard, is to prevent the operator from being
crushed against the man platform controls, resulting in involuntary operation of the
machine.
Crush
Guard Frame

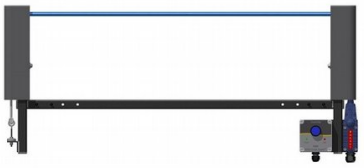

The Crush Guard frame is
mounted to the man platform
in front of the operator
controls.
Crush
Guard Control
Module
The Crush Guard control
module is mounted at the rear
of the operator controls. This
module integrates with the
man platform electronics
Wire
Harness

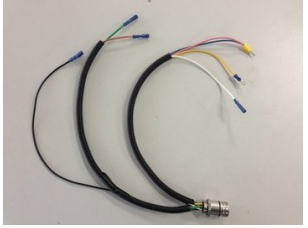

The wire harness provides
electrical connectors between
the control module and the
man platform electronics.

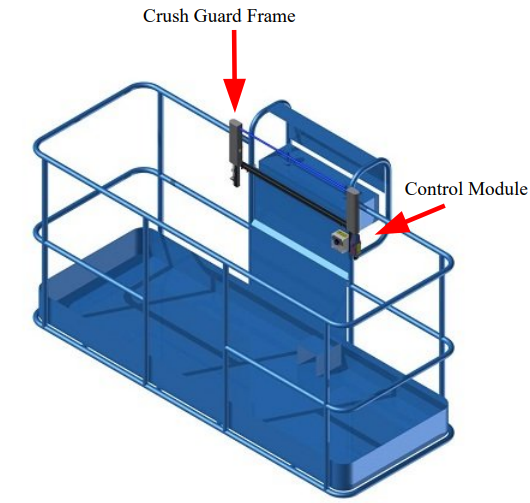

Shown below is a general overview of how the major components are integrated with the
man platform
