Crush Guard - Installation - Genie Z-40/23N Crush Guard Frame Installation
This Tech Doc shows how the Crush Guard frame is Installed on the Man Platform
Installation Steps:

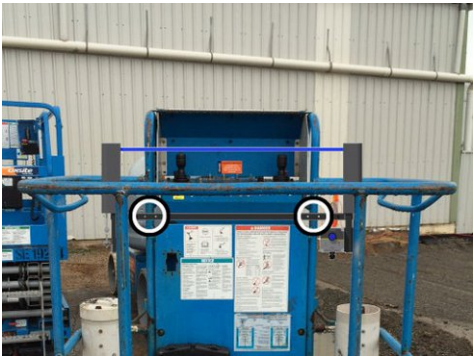

1. Position the Crush Guard Frame
on the man platform.
2. Secure the
frame to the vertical posts on
each side of the operator
controls, using the supplied UBolts
3. Tension to finger tight.

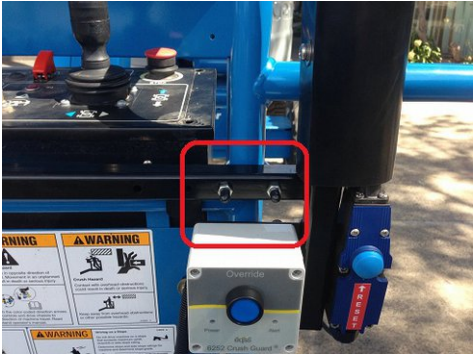

4. On the left hand side of the
frame, tighten the two nuts
evenly on the U-Bolt to 12Nm.
5. Once tensioned correctly, place
two of the supplied rubber caps
over the exposed U-Bolt
threads.

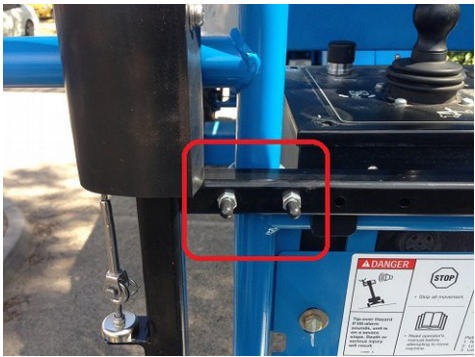

6. On the right hand side of the
frame, tighten the two nuts
evenly on the U-Bolt to 12Nm.
7. Once tensioned correctly, place
the remaining two supplied
rubber caps over the exposed
U-Bolt threads.

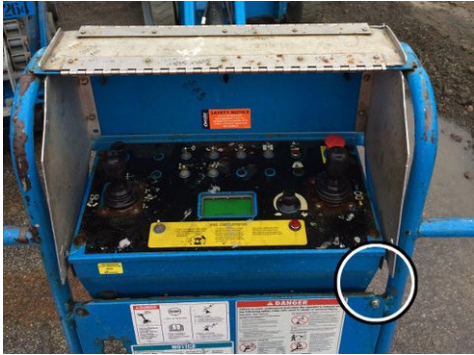

8. Run the cable from the Crush
Guard Frame, through the
opening in the man platform (as
shown in the image below).
9. The cable
has two M12 connectors and it
may be necessary to run one
connector at a time through the
opening to avoid any damage to
the cable. See Note 1.
Note 1. The Crush Guard Frame is
not shown in the image.
