Crush Guard - Installation - JLG X19J Crush Guard Frame Installation
This Tech Doc shows how the Crush Guard frame is Installed on the Man Platform
Installation Steps:

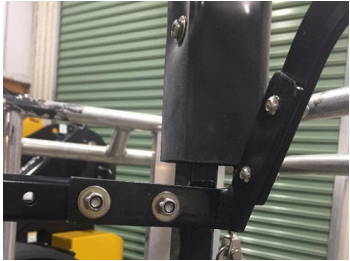

1. Attach the mounting brackets to
the Crush Guard Frame using the
supplied bolts.

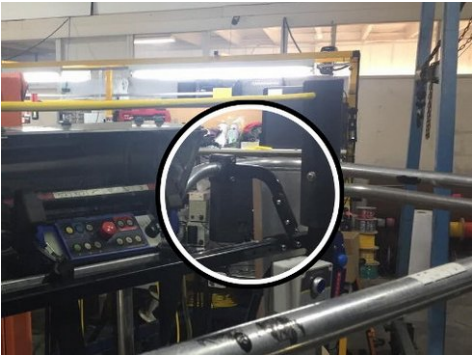

2. Position the Crush Guard Frame
on the man platform.

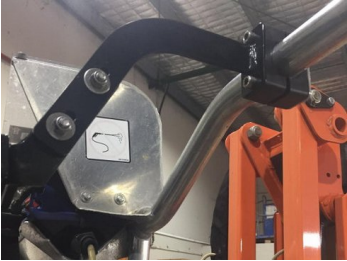

3. Secure the
frame to the hand rails on each
side of the operator controls
using the supplied hose clamps.
