Crush Guard - Installation - Haulotte HA15-IP Wiring Instructions
This Tech Doc was written to help with wiring on a Haulotte HA15-IP
Installation Steps:
1. Connect the ground Black wire from
the crush guard harness to the Wire 100
2. Connect the Pink power wire(24V) to
the wire id 106.
3. Locate the deadman switch wire id 316.
4. Cut the deadman switch wire 316 and join the Green wire from the harness to the
joystick side, and Brown wire to the ECU side.

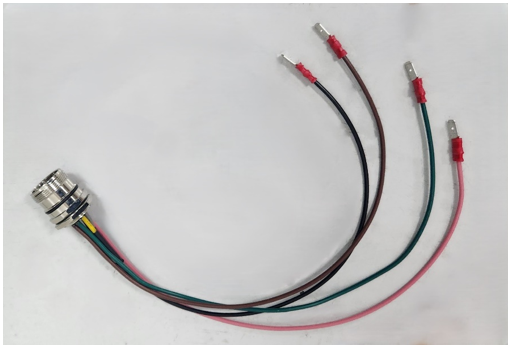

Below: Haulotte HA15-IP EQSS Crush Guard Harness
