Crush Guard - Installation - Haulotte HA16PE/HA18PX Frame Installation
This Tech Doc shows how the Crush Guard frame is Installed on the Man Platform
Installation Steps:
1. Position the Crush Guard Frame
on the man platform.

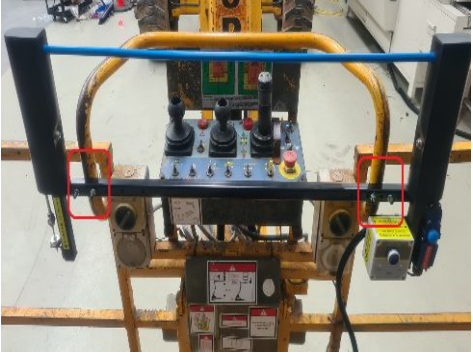

2. Secure the
frame to the vertical posts on
each side of the operator
controls using the supplied UBolts
3. Tension the bolts to finger tight.

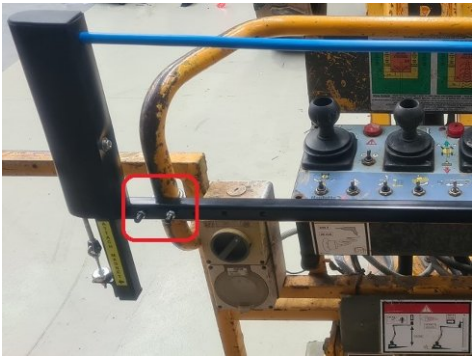

4. On the left hand side of the
frame tighten the two nuts
evenly on the U-Bolt to 12Nm.

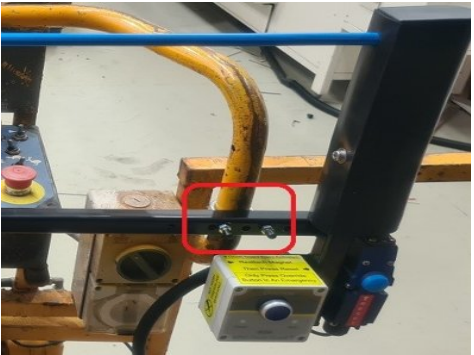

5. On the right hand side of the
frame, tighten the two nuts
evenly on the U-Bolt to 12Nm.
