Crush Guard - Installation - Haulotte HA16PE/HA18PX Installation Overview
The purpose of the Model6252 Crush Guard is to prevent the operator from being crushed
against the man platform controls resulting in involuntary operation of the machine.
The
system consists of the following functional components
Crush
Guard
Frame

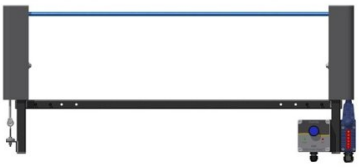

The Crush Guard frame is
mounted to the man platform
in front of the operator
controls.
Crush
Guard
Control
Module
The Crush Guard control
module is mounted at the rear
of the operator controls. This
module integrates with the
man platform electronics
Wire
Harness

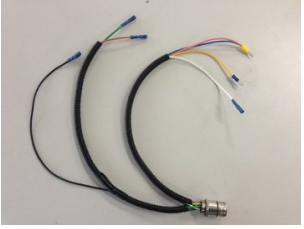

The wire harness provides
electrical connectors between
the control module and the
man platform electronics.

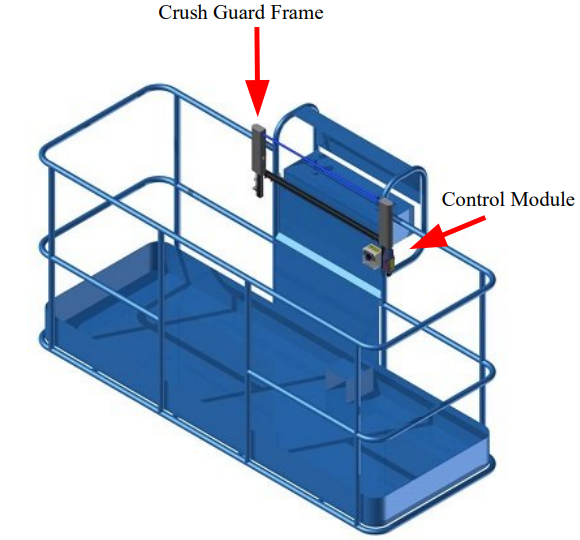

Shown below is a general overview of how the major components are integrated with the
man platform
