This Tech Doc shows how the Machine Connections are completed
Installation Steps:
1. Remove the 4 bolts that secure
the lid to the operator control
box.
2. Drill a 20 mm hole in the location
marked earlier for the M23
connector.

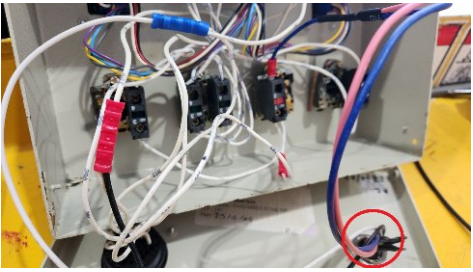

3. Insert the supplied cable wire
harness up through the exposed
hole, making sure that the M23
connector remains on the outside
of the operator control box.

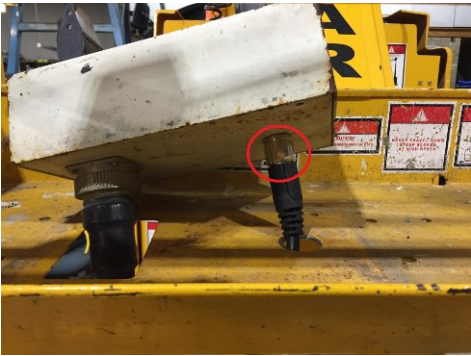

4. Using a 24mm open ended
spanner, secure the M23
connector to the control panel
using the supplied metal lock
nut.
5. Make sure that the nut is
done up tight to avoid the
connector rotating.
6. On the emergency stop switch
locate the wire 37A.
7. Remove the wire 37A from the
emergency stop terminal and
replace with the fork terminal on
the pink / blue wire from the
Crush Guard wire harness.

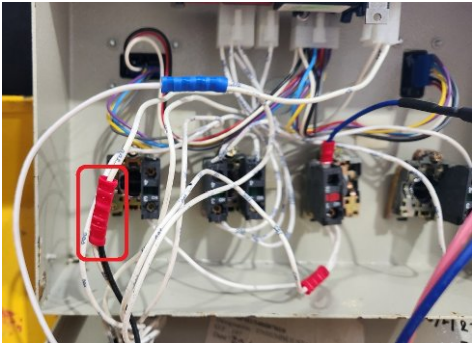

8. Cut off the fork terminal from
the wire 37A that was removed
from the emergency stop switch
and crimp join the white wire
from the Crush Guard wire
harness. See Note 1.
9. Locate the wire 100 coming from
the Operator control box
connector.
10. Cut the wire and
crimp join the wire (100) with
the crush guard harness black
wire. See Note 1.
11. Secure the Crush Guard wire
harness to the existing wires
using cable ties.

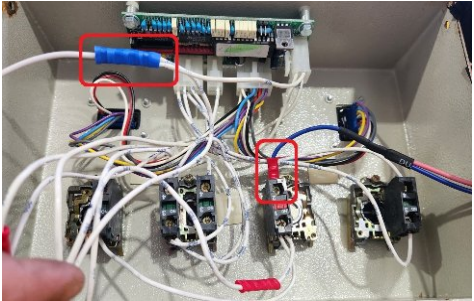

Note 1. The control box electronics may be different from the picture shown.
