Crush Guard - Installation - Haulotte Star10 Crush Guard Frame Installation
This Tech Doc shows how the Crush Guard frame is Installed on the Man Platform
Installation Steps:
1. Position the Crush Guard Frame
on the man platform.

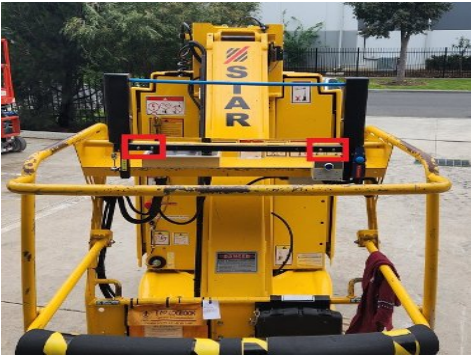

2. Secure the
frame to the horizontal posts on
each side of the operator
controls using the supplied hose
clamps, clamp cover and
mounting bracket.

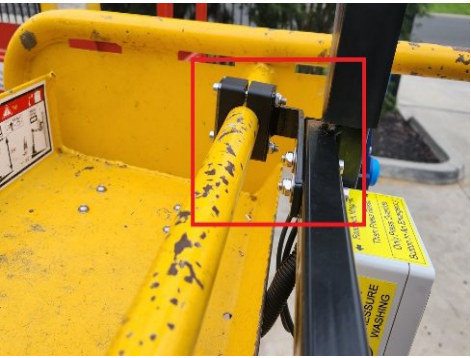

3. On the left hand side of the
frame, tighten the two nuts on
the hose clamps evenly.
4. Tighten
the other two nuts on the Crush
Guard frame attached to the
mounting bracket, ensuring they
are tightened evenly.

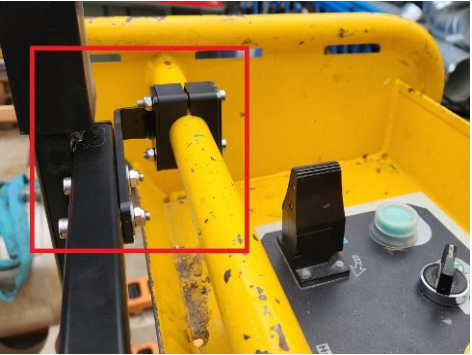

5. On the right hand side of the
frame, tighten the two nuts on
the hose clamps evenly.
6. Tighten
the other two nuts on the Crush
Guard frame attached to the
mounting bracket, ensuring they
are tightened evenly.
