Crush Guard - Installation - Haulotte Star10 Finalisation
This Tech Doc shows how to finalise and complete the installation
Installation Steps:

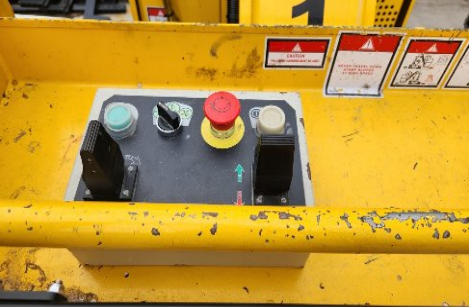

1. Place the lid back onto the
operator control box and tighten
the 4 bolts that secure the lid.

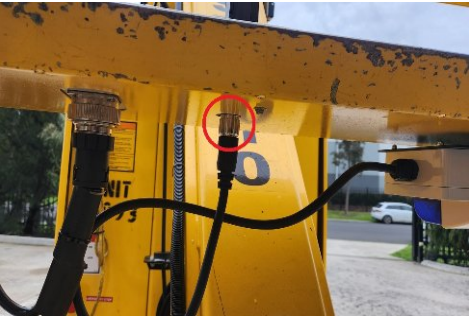

2. Connect the M23 connector from
the Control Module to the socket
installed in the operator control
box.
3. Make sure that the
connector is screwed up finger
tight.

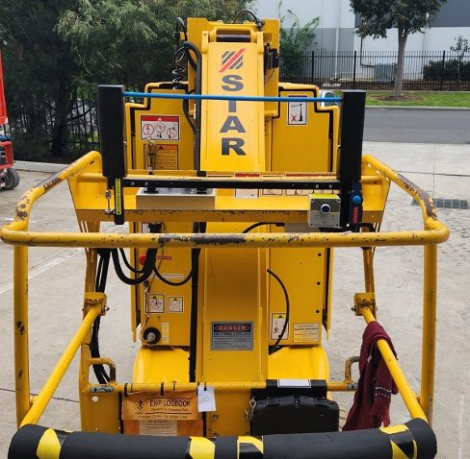

4. Inspect the entire Crush Guard
installation, make sure that all
bolts, connectors and cables are
secure.
5. Make sure that the
machine is fit for operation.
