Crush Guard - Installation - JLG X19J Crush Control Module Installation
This Tech Doc shows how the Control Module is Installed on the JLG X19J Boom Lift
Installation Steps:

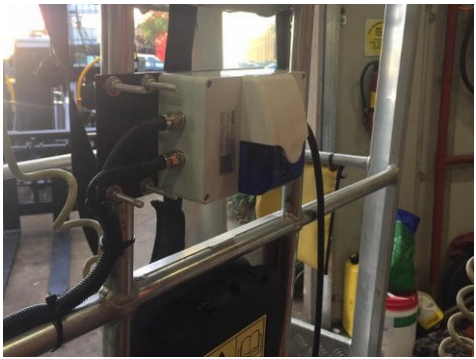

1. Secure the Control Module to the
vertical post under the operator
controls, using the supplied Ubolts and nuts.

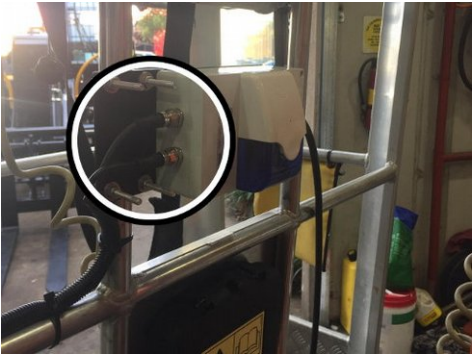

2. Secure the M12 5 way and 8 way
screw lock connectors from the
Crush Guard Frame into the
Control Module.
3. Make sure that
the screw lock connectors are
tightened finger tight into their
corresponding sockets.
4. Secure the cable from the Crush
Guard Frame into the Control
Module, to the man platform
frame using cable ties.
5. Hold the M23 connector from the
Control Module next to the
electronic housing module behind
the man platform and note the
location as shown.
6. Cable tie the
M23 cable to the man platform
frame.
7. Ensure there is enough slack in
the cable to allow the platform to
rotate without stretching or
pinching the cable.
