Notes
This Tech Doc shows the Installation Overview on the JLG X19J Boom Lift
The purpose of the Model6252 Crush Guard is to prevent the operator from being crushed against the man platform controls, resulting in involuntary operation of the machine.

The system consists of the following functional components:

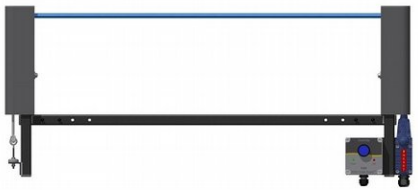

Crush Guard Frame
The Crush Guard frame is mounted to the man platform in front of the operator controls.


Crush Guard Control Module
The Crush Guard control module is mounted at the rear of the operator controls. This module integrates with the man platform electronics

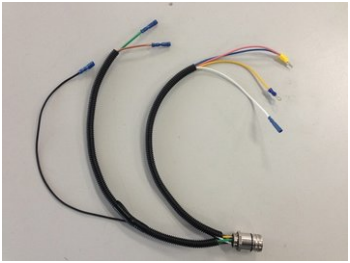

Wire Harness
The wire harness provides electrical connectors between the control module and the man platform electronics.

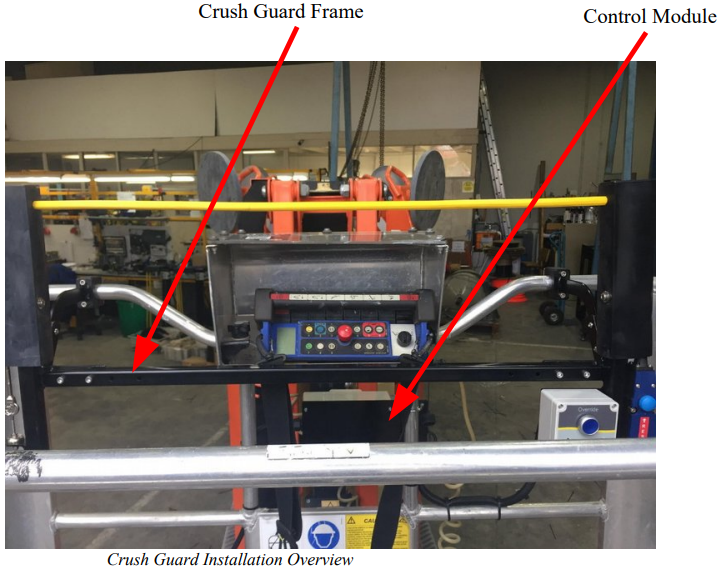

Shown below is a general overview of how the major components are integrated with the man platform
