Crush Guard - Installation - JLG X19J Finalisation

Crush Guard - Installation - JLG X19J Finalisation

Notes
This Tech Doc shows how to Finalise and complete the installation
Installation Steps:

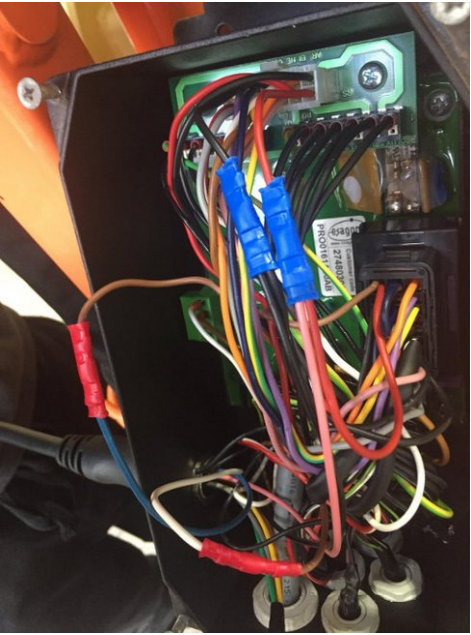

1. Replace the lid to the electronic enclosure.

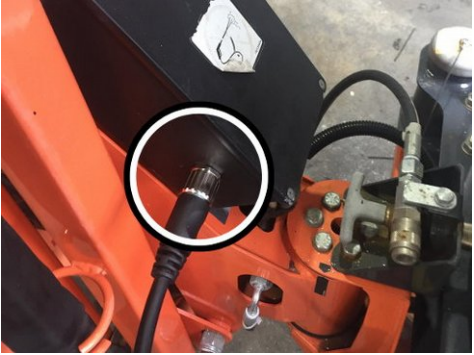

2. Connect the M23 connector from the control module to the socket installed in the operator control box.
3. Make sure that the connector is screwed up finger tight.

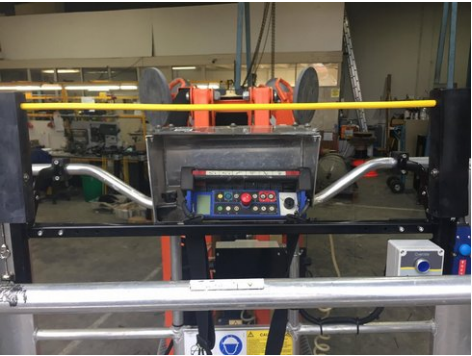

4. Inspect the entire Crush Guard installation, make sure that all bolts, connectors and cables are secure.
5. Make sure that the machine is fit for operation.
