Crush Guard - Installation - Manitou 160ATJ/180ATJ/200ATJ Control Module Installation
This Tech Doc shows the Control Module Installation steps on the Manitou 160ATJ/180ATJ/200ATJ Boom Lift
Installation Steps:

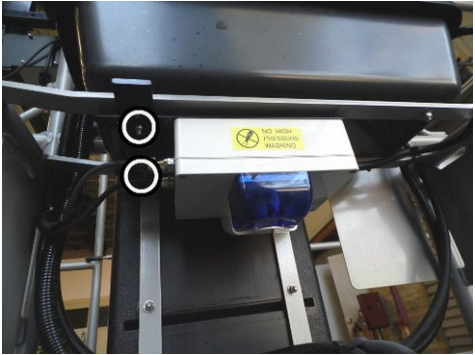

1. Remove the two mounting bolts
holding the bucket container (as
shown in the photo below).
2. Use the existing bolts to secure
the control module bracket to the
EWP.
Note: An older mounting bracket
is shown in the picture.

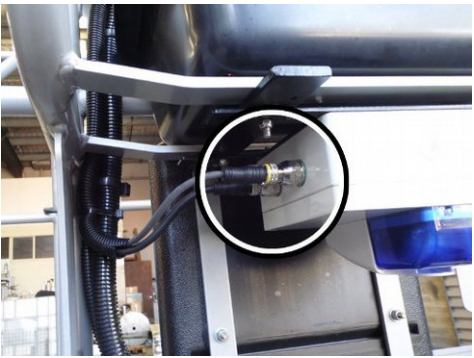

3. Secure the M12 5-Way and 8-Way
screw lock connectors from the
Crush Guard Frame into the
Control Module.
4. Make sure that
the screw lock connectors are
tightened finger tight into their
corresponding sockets.
