Crush Guard - Installation - Manitou 160ATJ/180ATJ/200ATJ Frame Installation
This Tech Doc shows the Frame Installation steps on the Manitou 160ATJ/180ATJ/200ATJ Boom Lift
Installation Steps:

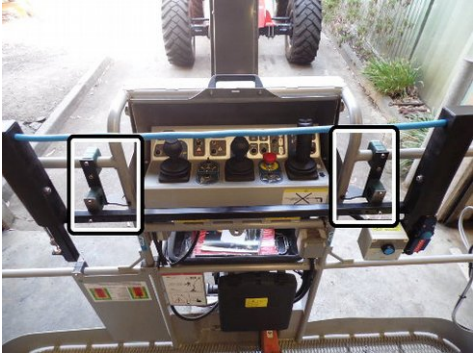

1. Attach the mounting brackets to
the hand rails on each side of the
controls.
(Do not secure yet - to
ensure the mounting brackets
can slide along the hand rails to
allow the frame to be mounted)
2. Position the Crush Guard frame
on the man platform.
3. Use the
long 80mm bolts to secure the
frame to the mounting brackets.
4. Tighten the bolts securing the
mounting brackets to the
handrails. Note: When the frame is
mounted, the control box cover
can no longer be fully closed.

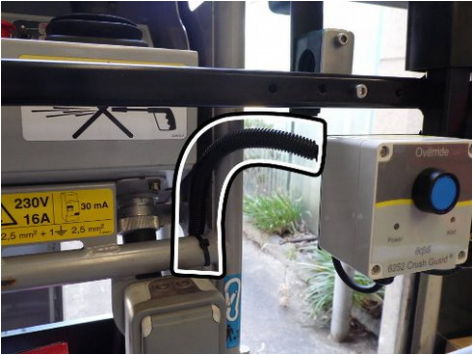

5. Run the cable from the frame
through the opening in the man
platform (as shown in the image below)

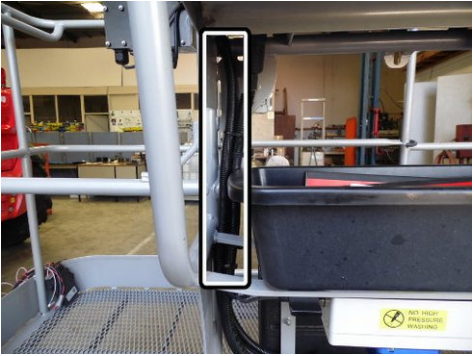

6. Run the cable along with existing
cables.
7. Secure with cable ties
once the control module is
attached.
