Crush Guard - Installation - Power Filter Installation

The purpose of this Tech Doc is to help with Installing the Power Filter
Overview
The Crush Guard has been designed to work on a minimum voltage of 6.5V. It has been discovered that
when the system is fitted to an aged machine, there may be voltage drops at the operator control box when
the machine is starting. This causes the Crush Guard to reset.

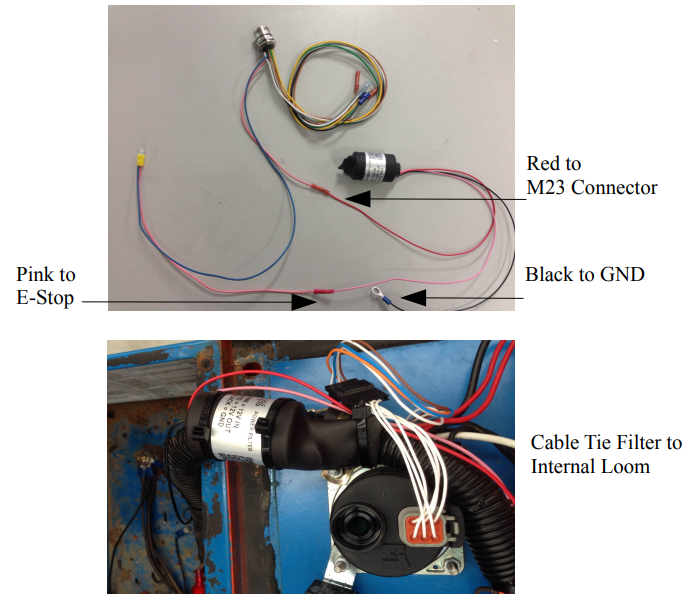

The solution is to install the EQSS Power Filter (as
shown in the images below).
Installation
1. Position the Power Filter and fasten to the main loom using 2 cable ties.
2. Locate the Pink wire in the Crush Guard loom and splice in the Power Filter inline. The Pink wire
from the Filter attaches to the pink wire going to the E-Stop. The Red wire from the Power Filter
attaches to the Pink wire going to the Crush Guard M23 connector.
3. Finally connect the Black wire
from the converter to the ground point using the spade connector.
