Crush Guard - Service - Genie ALC500/ALC1000 Generic Schematic

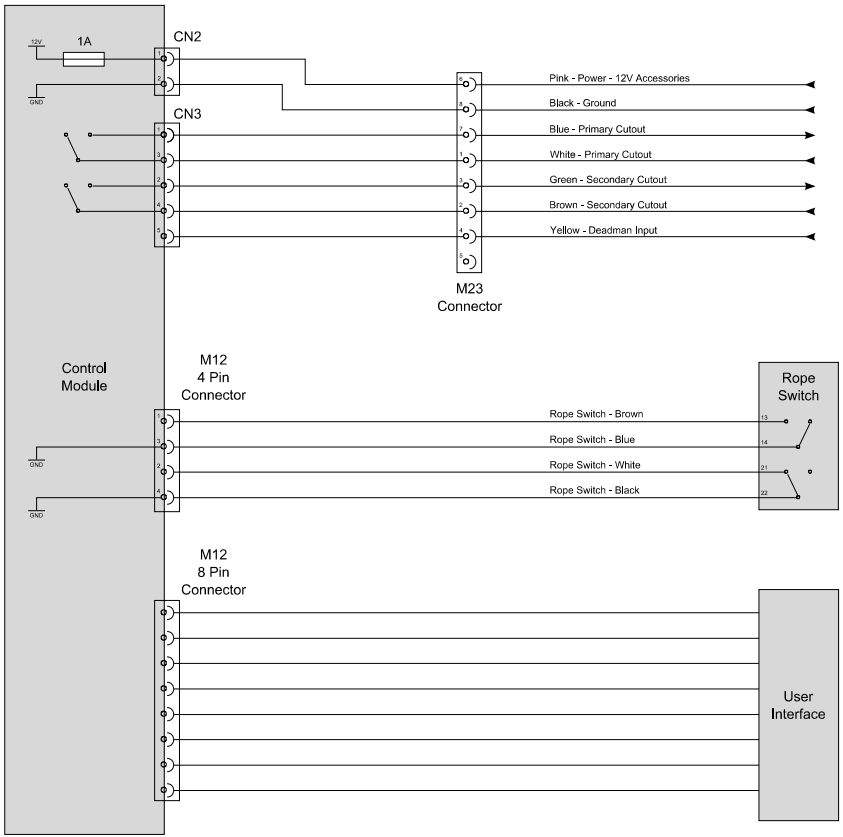

Below is a representative Crush Guard generic wiring schematic
