Crush Guard - Service - Manitou 160ATJ/180ATJ/200ATJ Machine Interface

Crush Guard - Service - Manitou 160ATJ/180ATJ/200ATJ Machine Interface

Notes
The purpose of this Tech Doc is to help with servicing the Machine Interface

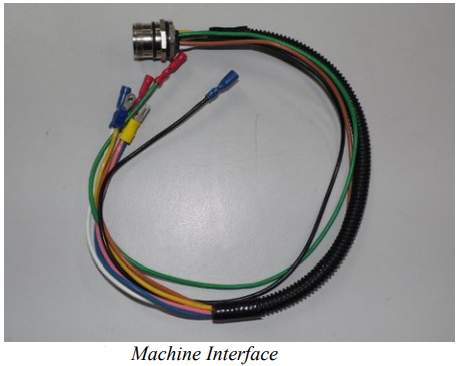

The machine interface is a M23 connector harness integrated into the EWP electronics (inside the control box).


Damage to Machine Interface Wiring
If the machine interface wiring for the Crush Guard has been damaged due to a breach of the EWP control box, then the machine interface wiring may need to be replaced.

Order the machine interface wiring that suits the Manitou 160ATJ/180ATJ/200ATJ control box. Then follow the instructions in the Crush Guard installation manual for the Manitou 160ATJ/180ATJ/200ATJ to install the machine interface wiring. If an individual wire has corroded or is damaged, it might be possible to just replace the section of wire.

Alert
If a single wire is being replaced, use wire that is equivalent to AWG16 gauge.
