Crush Guard - Service - Manitou 160ATJ/180ATJ/200ATJ Order Part Numbers

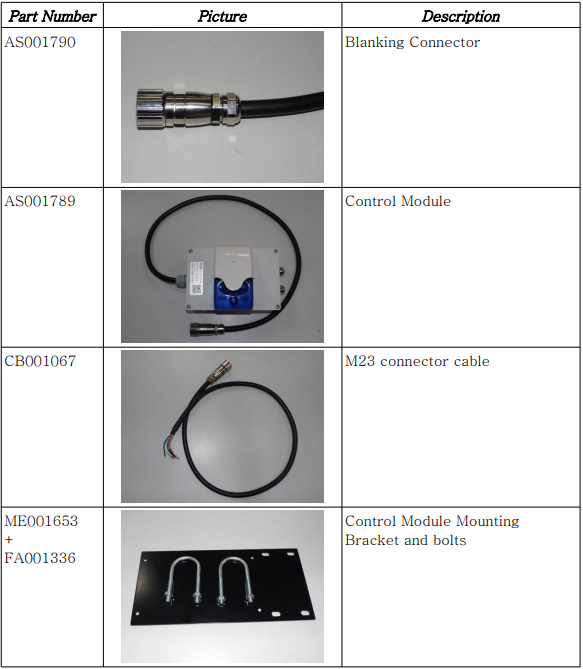

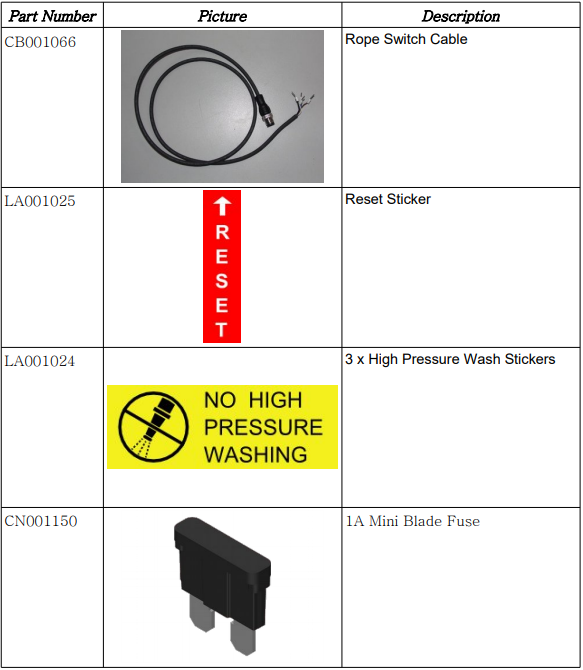

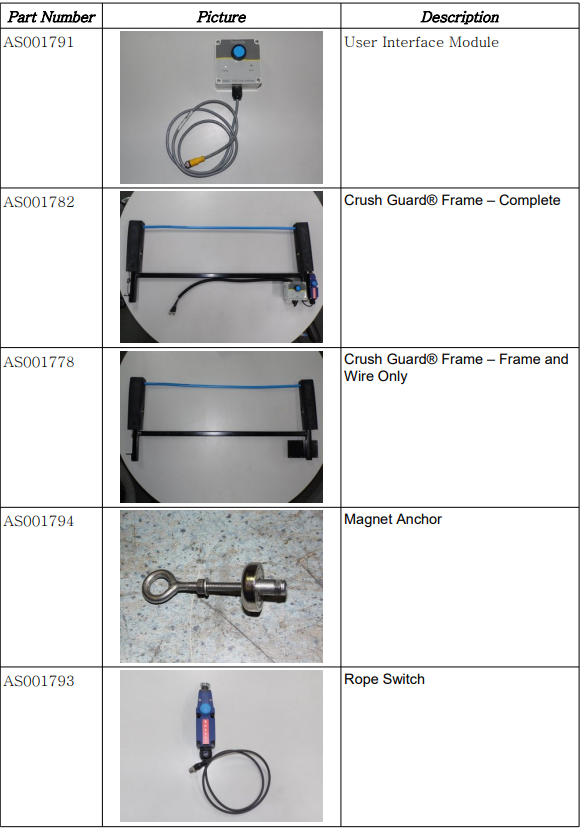

Below is the ordering information for replacement components for the Crush Guard
