Crush Guard - User - Pre Operation Checks
Run through the tests below before operating the machine.

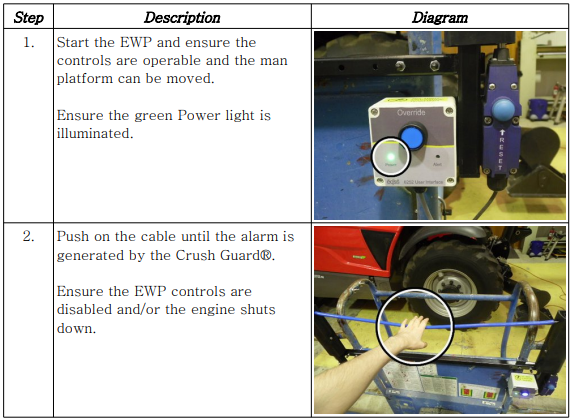

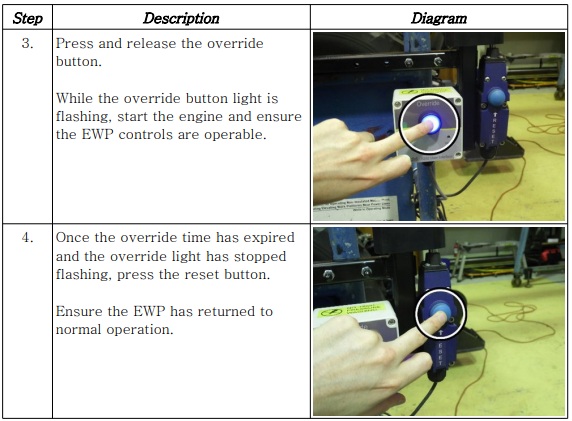

The procedure below tests the cutout and override mechanism of the Crush Guard®:
These tests must be performed in addition to the pre
operation checks listed in the machine operator manual
