Gen3_ITC - Calibration - Determining Boom Angle Zero on ITC

Gen3_ITC - Calibration - Determining Boom Angle Zero on ITC

When calibrating the boom angle on an ITC for the Gen3-LMS, the boom must be raised up 0 degrees.

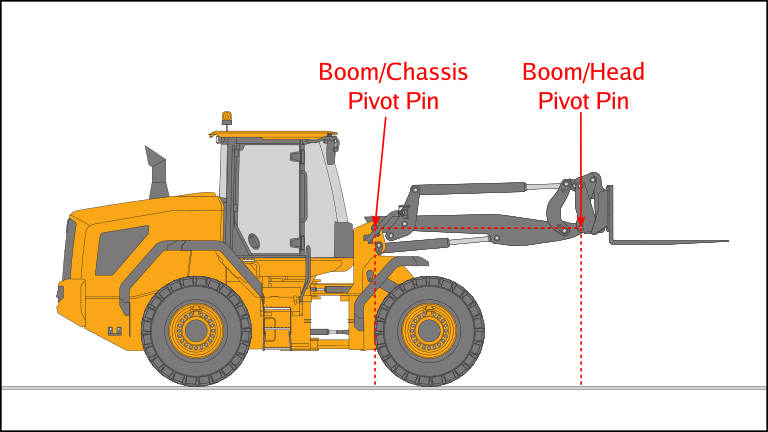

For an ITC the boom angle is at 0 degrees when the boom/chassis pivot pin and boom/head pivot pin are at the same height off the ground.
Move the ITC to flat level ground and use a plumb bob to align the pivots pins.
