Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - Installation Outline
Installation Outline

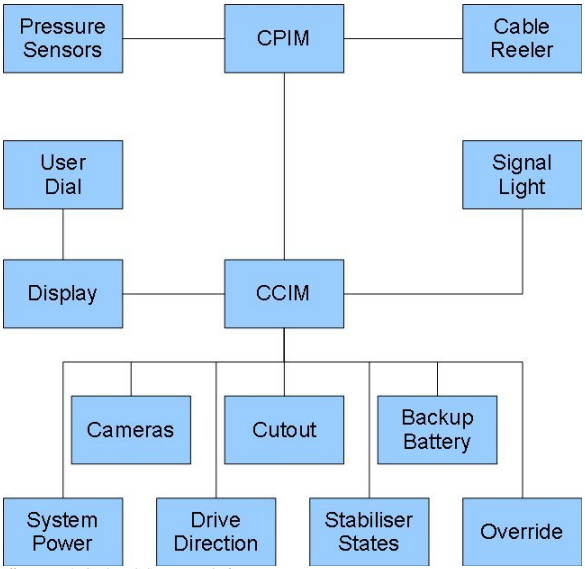

The diagram below outlines how the system components are connected for the Gen3
LMS.
It is recommended to install the components in the following order: the external sensor
components are mounted first, then the components inside the cabin and finally the
electrical connections.
