Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - Display Installation
The display is the main indicator device for the Gen3 LMS system.
It should be mounted
in a location that is visible to the operator at all times, regardless of the steering wheel
and/or seat position.
The supplied GEN3 display bracket has been designed to replace the existing GEN1
display bracket.

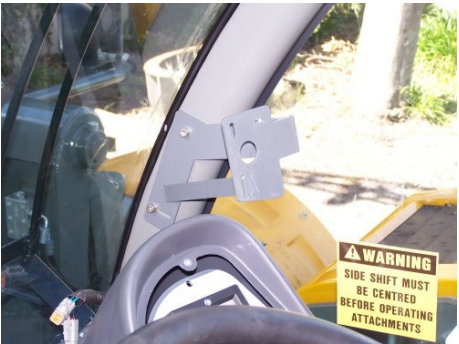

Below: GEN1 Display Bracket
The display is supplied with a swivel bracket that allows the display angle to be adjusted.

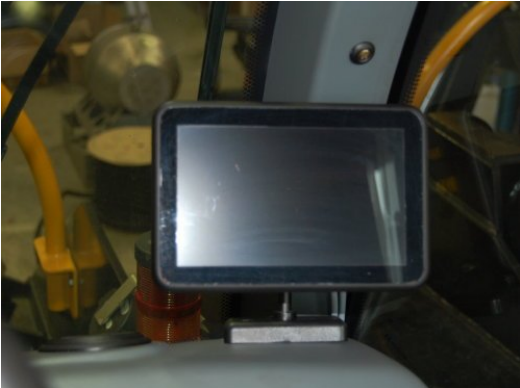

Below: Display Mounted on Dashboard
Connect the 5 pin cable from the user input control into the top connector on the display
and the connect the 8 pin cable from the CCIM into the bottom connector on the display.
Coil up any additional cable and store underneath the dashboard.

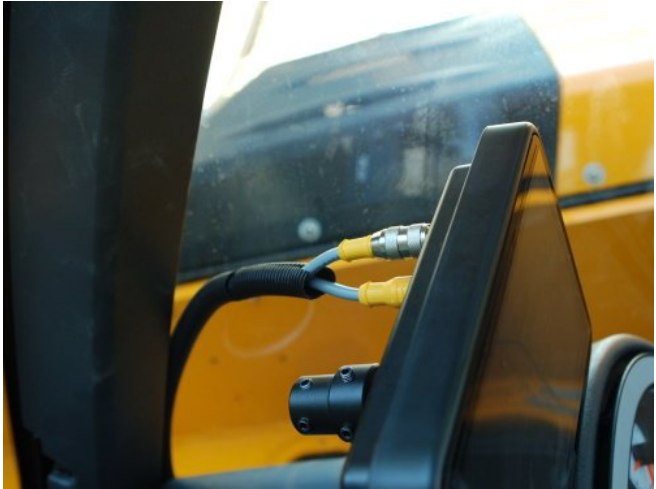

Below: Display Connectors Attached
Adjust the display bracket for optimal viewing angle once the
display is powered
The clip-on ferrites may need to be removed from the CCIM
and user control cables. If this is the case, note their location
on the cable and replace in the same postion, otherwise the
system will not pass EMC compliance.
