Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - Pressure Sensor Installation

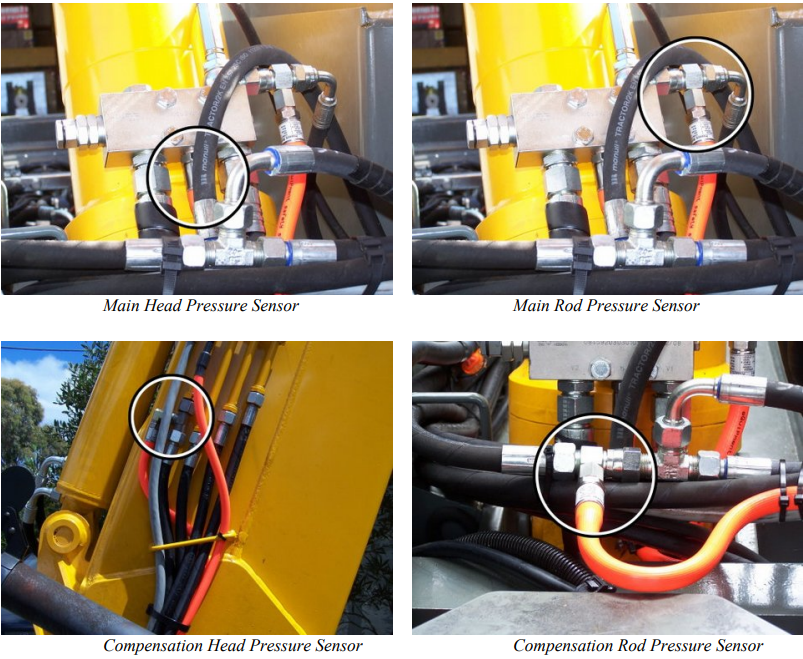

The hydraulic pressure sensors are used to measure the lifting load of the telehandler.
There are two pressure sensors that need to be mounted to measure the pressure in the
main lift cylinder.
The pressure sensors from the GEN1 will need to be swapped out for the GEN3 pressure
sensors. The same hydraulic fittings from the GEN1 are used for the GEN3 pressure
sensors.
Once installation is complete, the pressure sensor cables can be connected into the CPIM.
Ensure the boom is supported by an A frame before replacing
the Main Head pressure sensor. Otherwise the boom will fall.
