Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - Signal Light Installation
The signal light warns other workers when the telehandler is lifting loads close to it's
maximum capacity.
The signal light has a magnet on the base and is designed to be magnetically mounted to
the roof of the cabin. Alternatively, the signal light can be secured using the mounting
bracket.

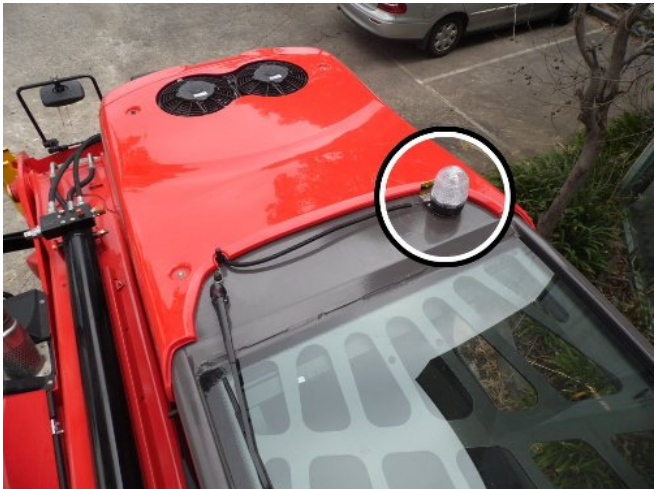

Below: Signal Light - Mounted
When installation is completed, the signal light cable will be connected into the CCIM CAN Buss.
