Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - User Input Control
The user input control switch is used to navigate the menus in the Gen3 LMS
The user input control should be mounted in the dashboard in a location that is usable and
visible to the operator.
Drill a 34 mm hole into the dashboard to mount the switch.

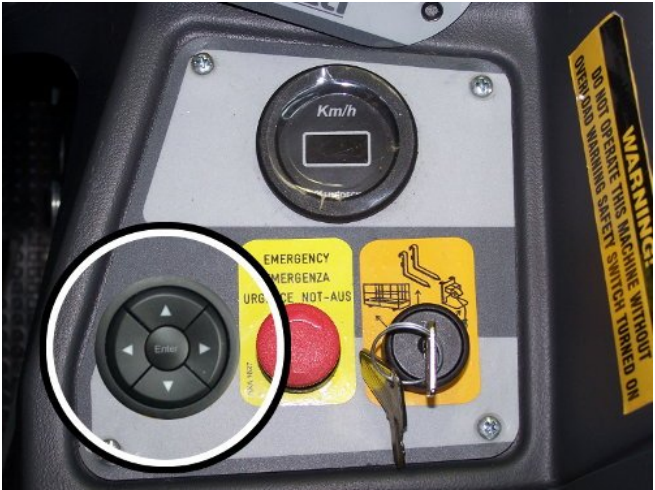

Below: User Control Directed Mounted in Dashboard
The cable from the user input control dial is connected to the display.
