Gen1 - User - Rated Capacity Limiter Range

Gen1 - User - Rated Capacity Limiter Range

The TSS will not engage the cut-out limit while the boom extension is less than 1 meter and the boom angle is less than 10 degrees (as per Australian Standard AS1418.19- 2007 Section 2.11.3.3 (b)).

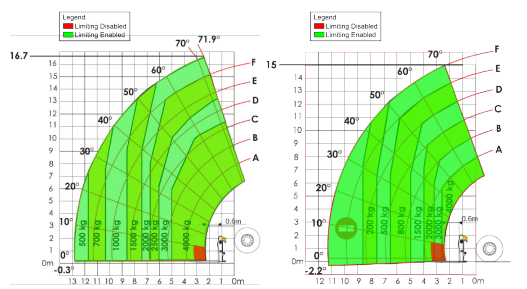

The graphs below shows the rated capacity limiter range.
