Gen1 - User - Understanding The Display

Gen1 - User - Understanding The Display

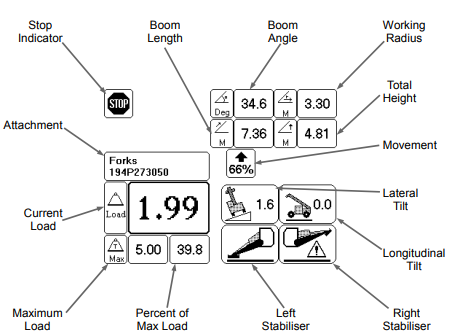

The TSS display consists of a multitude of display symbols which indicate the current state of the machine in real time.
Below is a description of the layout and symbols.


Display Symbols

Attachment Symbols
The attachment symbols are located in the middle left of the screen.

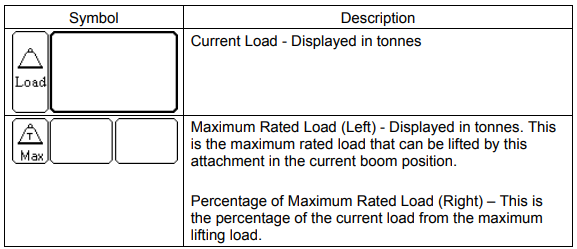

Load Symbols
The load measurement symbols are located in the bottom left of the screen.


Percentage of Maximum Rated Load
The percentage of maximum rated load is also displayed on a LED bar graph located on the top of the unit.

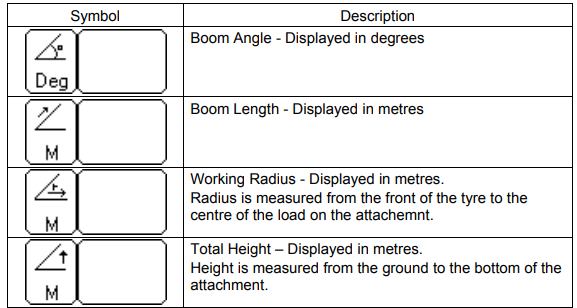

Boom State Symbols
A range of symbols display the current state of the boom. These symbols are located in the top right of the display.
The range and description of each symbol is shown below:

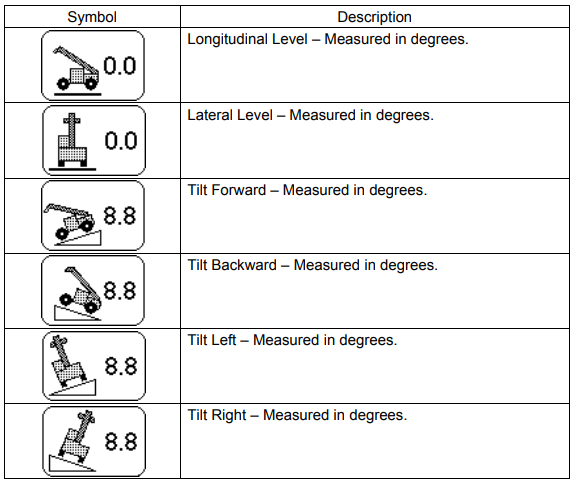

Carrier Tilt
The carrier tilt icons are displayed towards the bottom right of the screen.

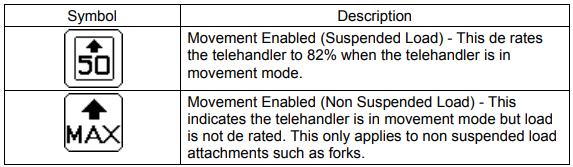

Movement Symbols
This symbol appears when the telehandler is in movement mode.

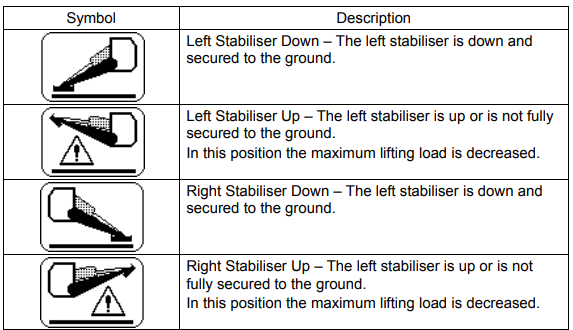

Stabilizer Position
The stabilizer icons are displayed at the bottom right of the screen.

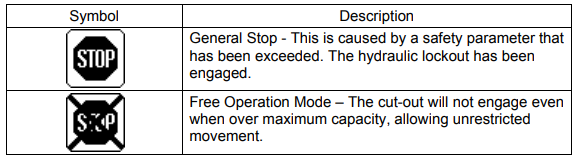

Stop Symbols
A range of general stop symbols are shown in the upper left corner of the screen.
The description of each symbol is shown below:

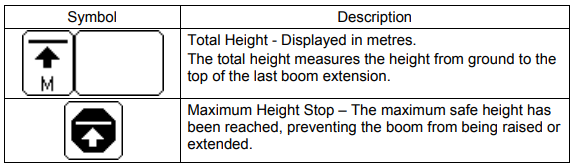

Height Limit Symbols (Where Fitted)
When height limit is enabled the following symbols will be shown in the screen.
​
