Gen1 - User - Visual and Audio Warning States

Gen1 - User - Visual and Audio Warning States

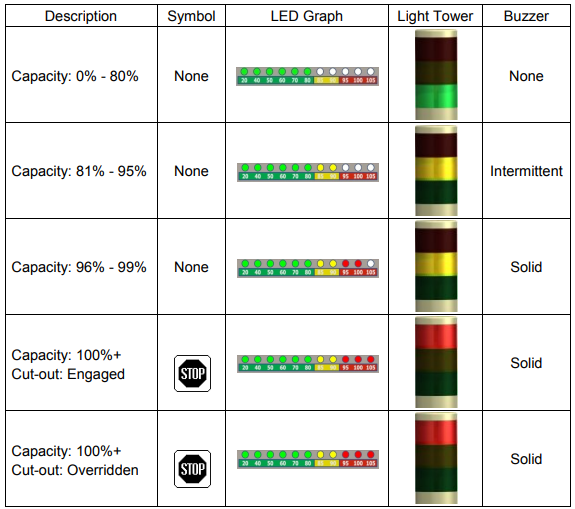

The table below outlines the visual and audio warnings for each operating state.

Once the capacity exceeds 100% and the cut-out is engaged, the cut-out will not disengage until the capacity is below 95%.
