Gen3 - Attachments - Attachment Automatic Recognition Installation

Gen3 - Attachments - Attachment Automatic Recognition Installation

Notes
When installed, the system will read the identification tag on the attachment and automatically change the system to match that attachment.
Telehandlers that have attachment automatic recognition capabilities, do not use a standard Gen 3 cable reeler. The standard cable reeler simply uses a retractable steel cable and has no means of connecting to an RFID reader. The specialised cable reeler that is used for this purpose, uses spool-able cable with internal conductors that allow the RFID reader  to be connected to the Gen 3 system.

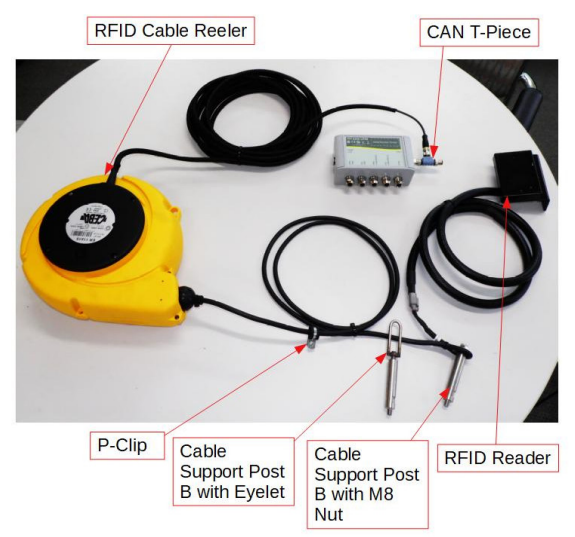

Connection Layout

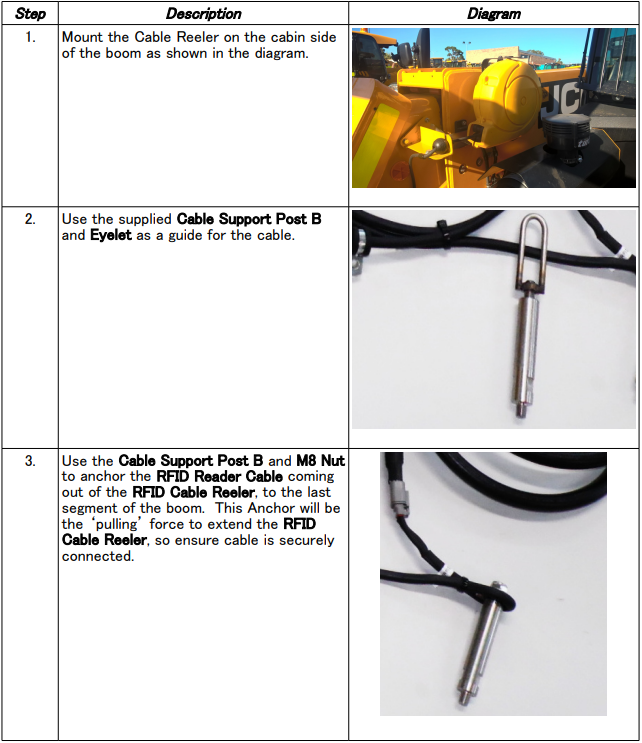

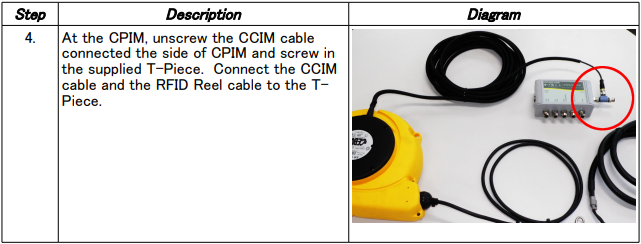

RFID Cable Reeler Installation

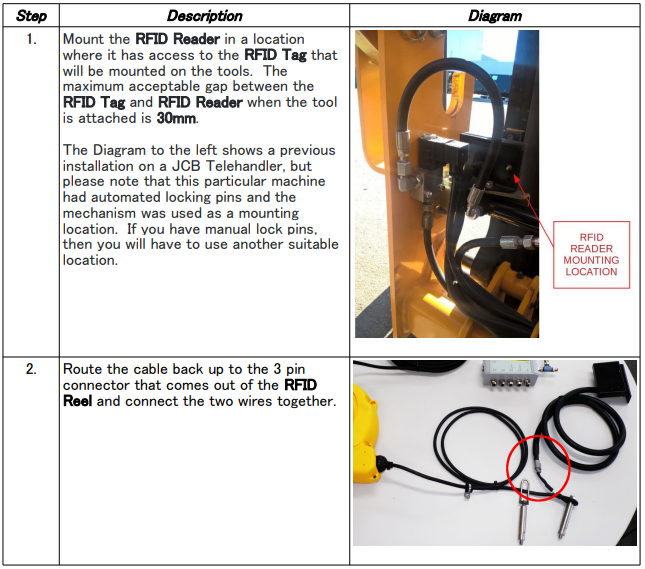

RFID Reader Installation

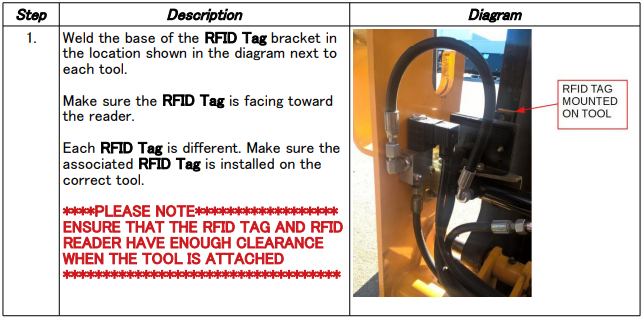

RFID Tag Installation
