Gen3 - Fault Code - All Gen 3 Fault codes
Gen 3 Fault codes are displayed in Red color and are displayed in the same - on screen section as the 'Attachment' field

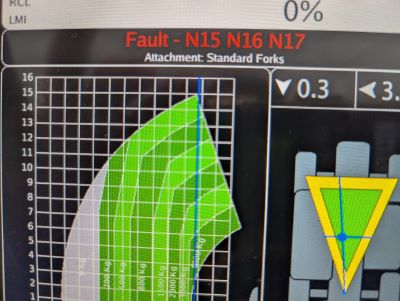

On screen Fault codes location.
Fault and fault codes are only displayed if a fault has actually occurred (blank normally).
To further identify the fault (via the Gen 3 Display), enter the Menu System, then select System Faults. This will display a list of the current system fault codes. Select a fault code (via the user navigation buttons) for more information. The information in the table below is also displayed on the system fault information screen (on the display) for the selected fault code.
Many of these fault codes have been further explained in their own individual Tech Docs.

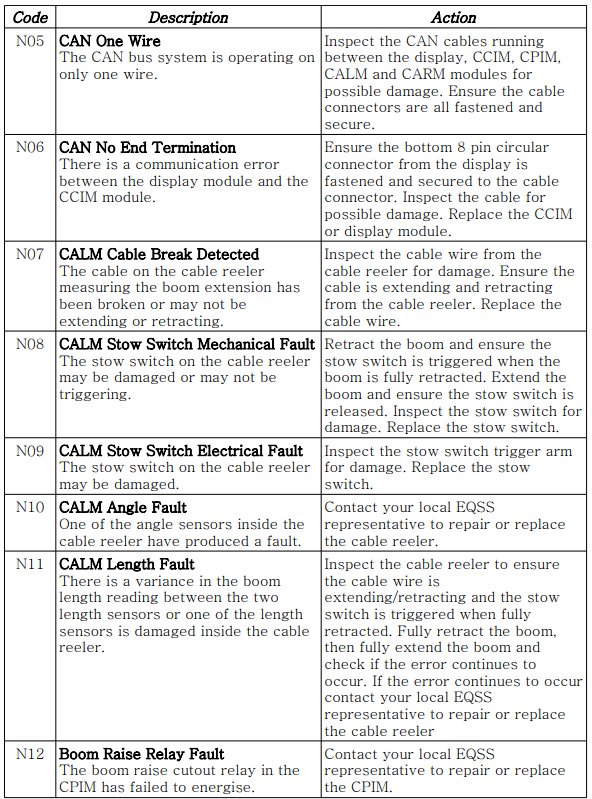

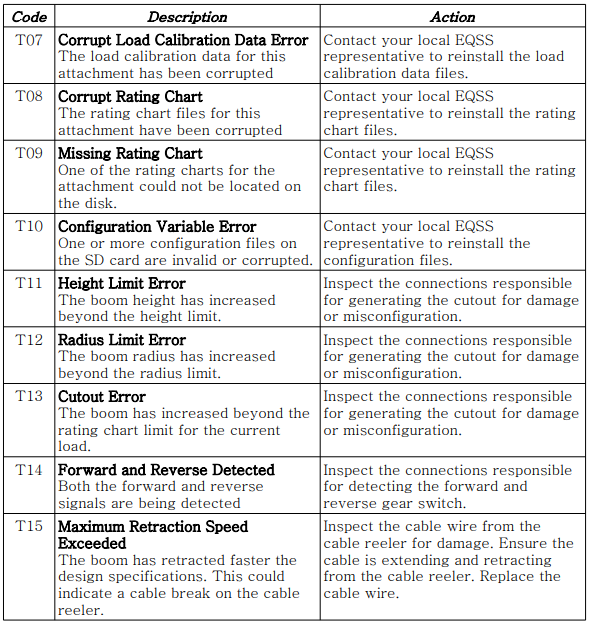

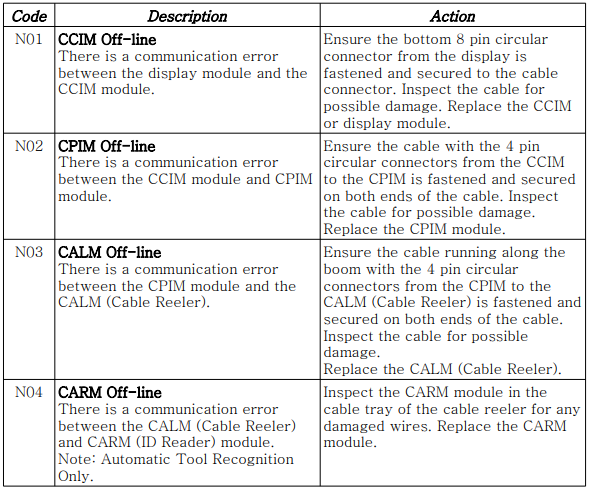

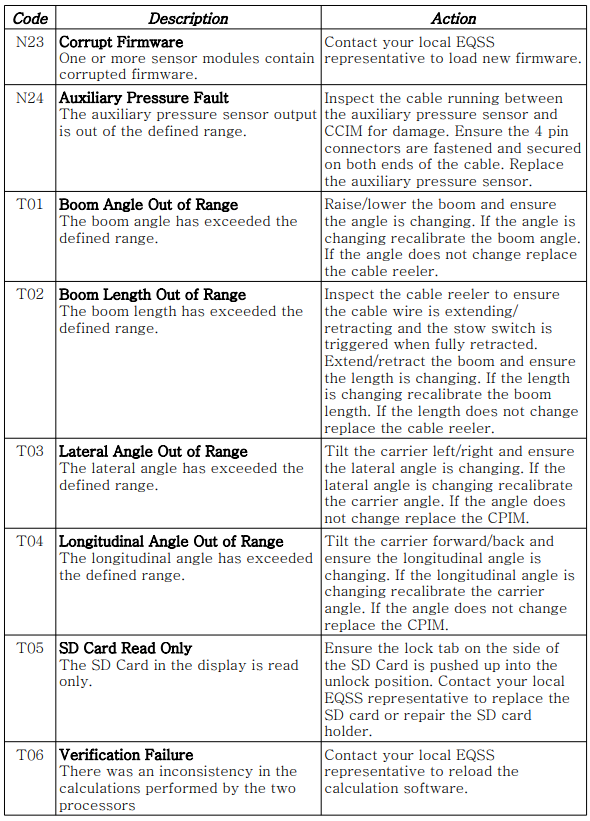

The table below describes the fault codes and actions required to fix the fault.
When communicating with EQSS over the phone, please state which of the above codes your Gen 3 is displaying
Please browse through the rest of the online Tech Docs for more in depth solutions to some of the above fault codes
