Gen3 - Fault Code - Status Icons

Gen3 - Fault Code - Status Icons

The top right of the main window below the capacity bar holds the location of the status icons.

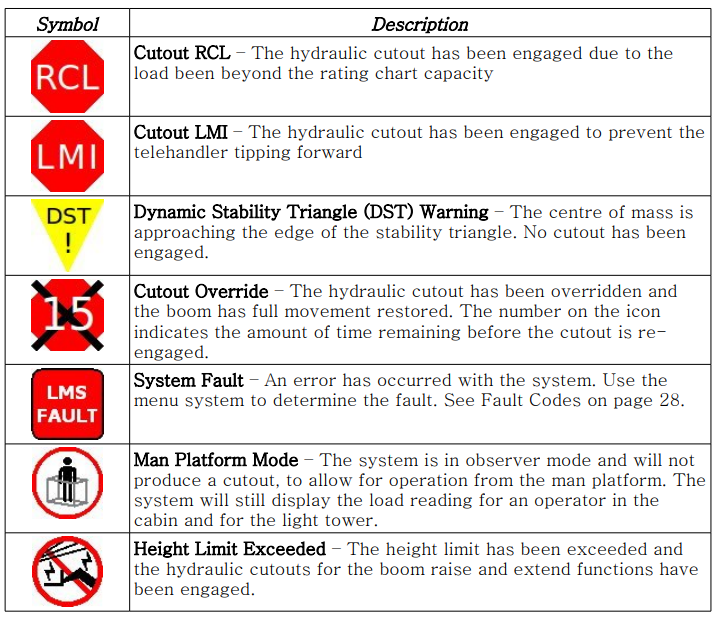

Below is a description of each status icon:


The icon status can only display 3 icons. If more than 3 icons are enabled the 3 most important icons are shown, such as override or cutout.

The system will not engage the cutout if the boom extension is less than 1 metre or the boom angle is less than 10 degrees as per the Australian Standards
