Gen3 - Hardware - Cutout Overrides and mounting locations

Gen3 - Hardware - Cutout Overrides and mounting locations

Notes
The Gen-3 safety system will engage the hydraulic cutout if the Telehandler exceeds it's recommended capacity.
The operator is allowed to temporarily override this cutout to allow the boom to be moved back into a safe working region.

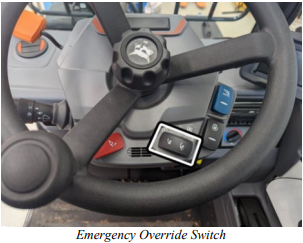

In order to engage the hydraulic override, the operator must hold down the Emergency Override switch. This will then display the override icon on the screen. The number displayed in the icon is the amount of time remaining in seconds until the cutout is re-engaged. Once the number counts down to 0, the operator will need to release the switch and then hold again for additional override time.

Info
Examples below of mounting locations for the Override on different makes of machines.

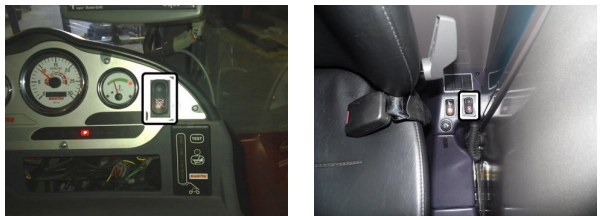

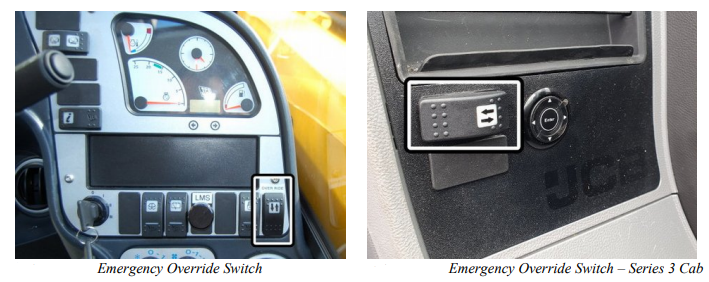

JCB Override

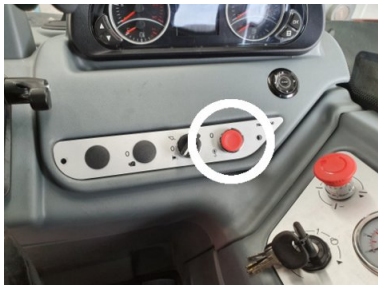

Snorkel Override

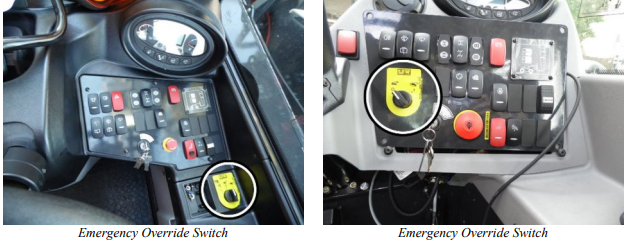

Bobcat Override


Manitou Override

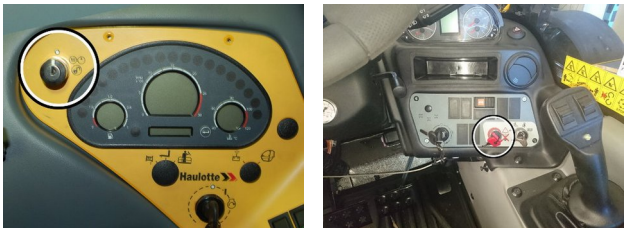

Haulotte Override

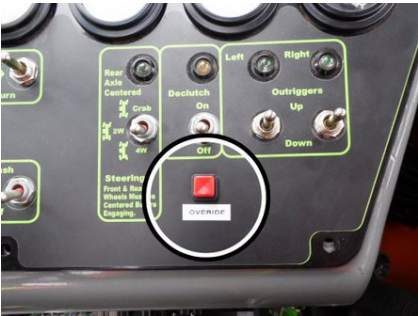

Xtreme Override


Info
The default override time is 15 seconds. It can be increased to a maximum of 60 seconds via the configuration
