Gen3 - User - User Input Control

Gen3 - User - User Input Control

The User Input Control mounting is Telehandler dependent and can be found in one of multiple locations within a cab.

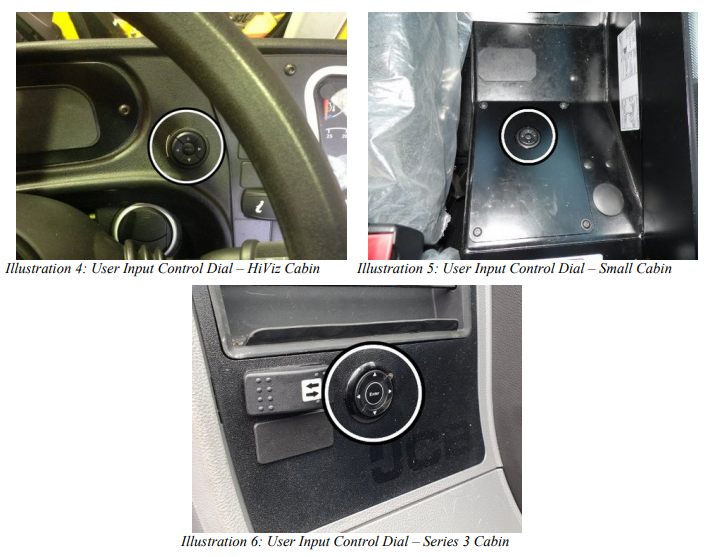

Below are some common mounting positions:


The user input control switch has 3 functions: increment up, increment down and select.

Increment Up – Pressing either the Up or Right buttons performs an increment up action, which may (depending on the current screen) scroll up the user menu or zoom into the rating chart.

Increment Down – Pressing either the Down or Left buttons performs an increment down action - which may either scroll down the user menu or zoom out of the rating chart.

Select – Press the Enter button to perform a select, which is used to either select a menu option or to enter the menu system.

When any of the user input control actions are performed the display will emit a short notification sound.
