Gen3 - Installation - Instructions to Disable Cutouts
The Gen 3 system can be temporarily bypassed by disabling the cutouts.
Each machine brand/model will have similar connection points, but will be located in different places on the machine. The easiest method of locating these places is to download the installation manual for your particular machine and then disable the connections that enable cutouts.
Installation manuals can be found in the Manuals
Example below of the steps to disable a Haulotte HTL 4014/4017 telehandler.
Disable System Power

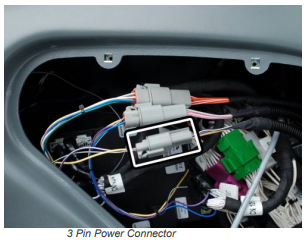

Remove the bolts attaching the dashboard. Locate the 3 pin connector attached to the Gen-3 wiring loom.
Disconnect the 3 pin connector.

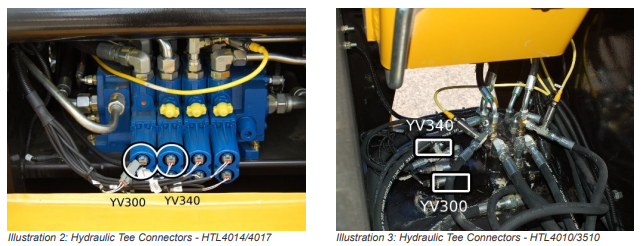

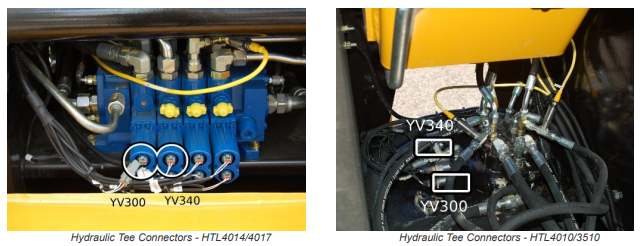

Remove Hydraulic Tee Connectors
Remove the covers at the rear of the machine. Disconnect the tee connectors into YV300 and YV340.

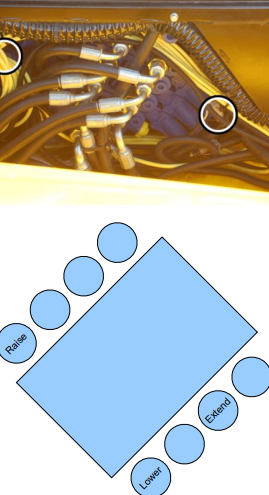

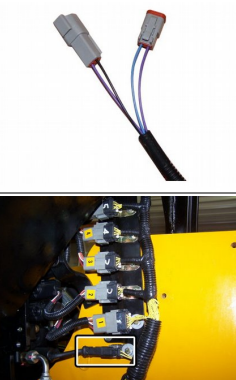

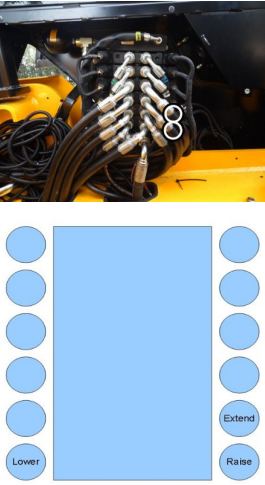

Below: Cutouts for some JCB models
