Gen3 - Installation - Display Brackets

There have been three major iterations of display brackets at EQSS

1. Version 1 was used on the Gen 1 system and is NOT pictured anywhere in this Tech Doc nor stocked any longer by EQSS. It's being mentioned only for completeness sake.

2. Version 2 was used on the Gen 3 system. It was mainly composed of plastic and is no longer provided nor stocked.

3. Version 3 is the latest version and is used on both the Gen 3 Version 3 Display unit and the Version 3.5 Display unit. It is considered to be a much more durable and robust solution, than all of the previous EQSS mounting bracket systems.

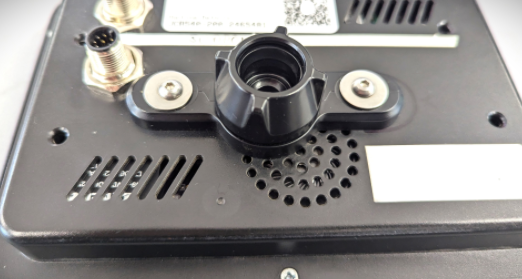

Below: Version 2 mount on a Gen 3 Display  (no longer supported nor stocked)

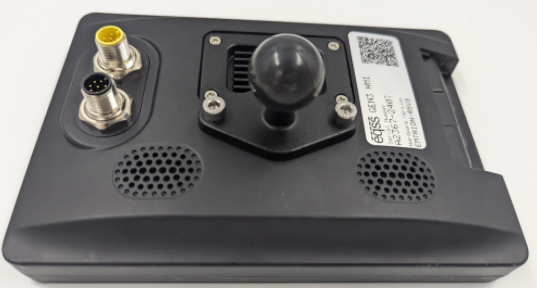

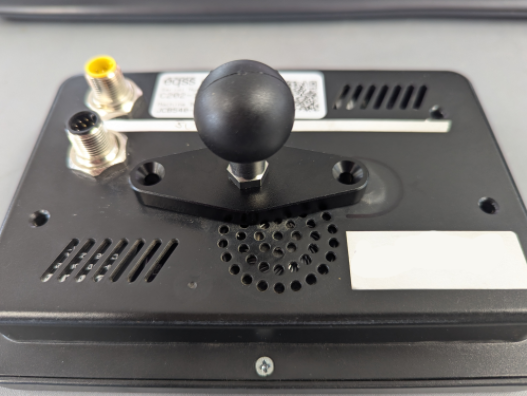

Below: Version 3 mount on a Gen 3 - Version 3 Display

Below: Version 3 mount on a Gen 3  - Version 3.5 Display

The Version 3 Display mount differs in hole distances between the Gen 3 Display and the Gen 3.5 Display. Therefore, these are NOT interchangeable and carry different assembly part numbers.

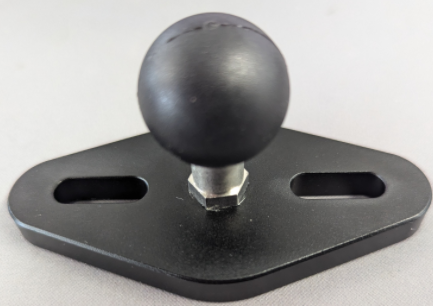

Below: Version 3 Dash Mount Bracket

ME001881 (HMI mount - Base mount plate 8mm, black) + ME001882  (HMI mount - Mounting ball 1" diameter to - 1/4" UNC)

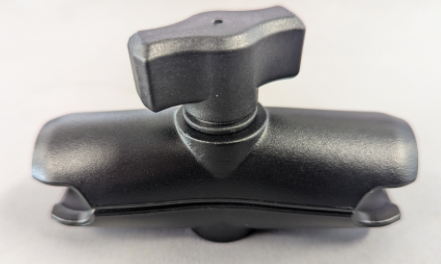

Below: ME001883    (HMI mount - Arm double socket 1inch - B size - medium length)

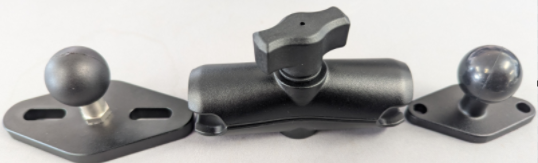

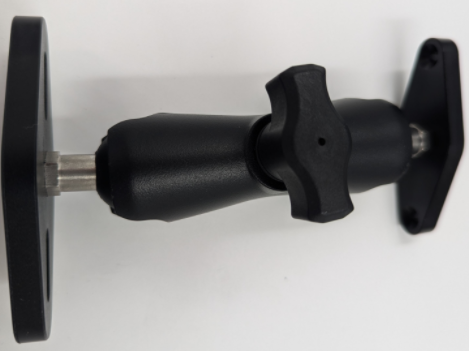

Below:  Example of a Complete  Assembled Version 3 mount - Dash Mount + Double Socket Arm + Display Mount

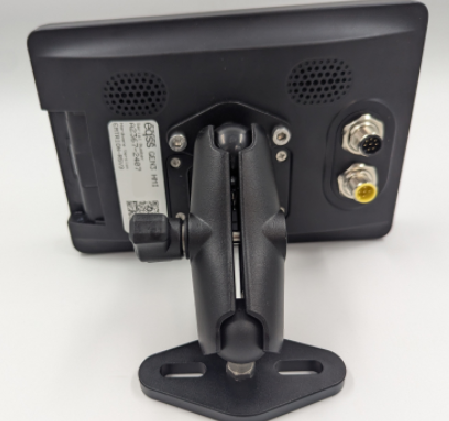

Below:  Complete  Assembled Version 3 mount - Mounted on a Gen 3 Version 3 Display

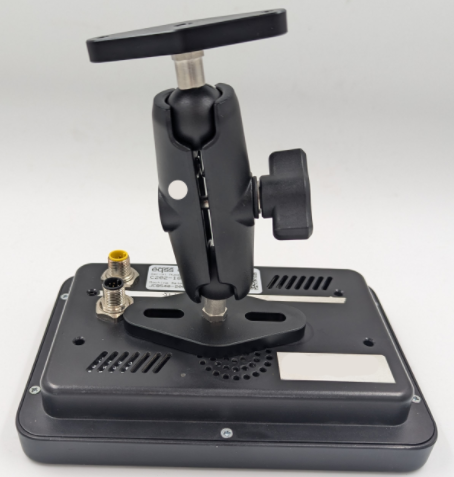

Below:  Complete  Assembled Version 3 mount - Mounted on a Gen 3 Version 3.5 Display

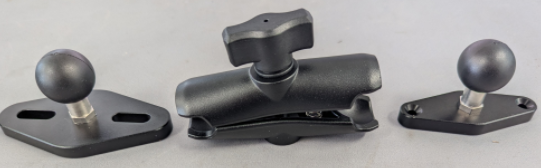

Below: Gen 3 Version 3 Display - Complete Mount Assembly [Dash Mount + Double Socket Arm  + Version 3 Display Mount]

Assembly No AS002369    (GEN3 HMI mounting bracket assembly, full metal adjustable)

Below: Gen 3 Version 3.5 Display  - Complete Mount Assembly [Dash Mount + Double Socket Arm  + Version 3.5 Display Mount]

Assembly No:  AS002368     (GEN3.5 HMI mounting bracket assembly, full metal adjustable)
