Gen3 - Installation - Generic Gen 3 LMS Schematics

Gen3 - Installation - Generic Gen 3 LMS Schematics

Notes
The Schematics below can be used to help with diagnosing EQSS Gen 3 LMS wiring faults on a Telehandler

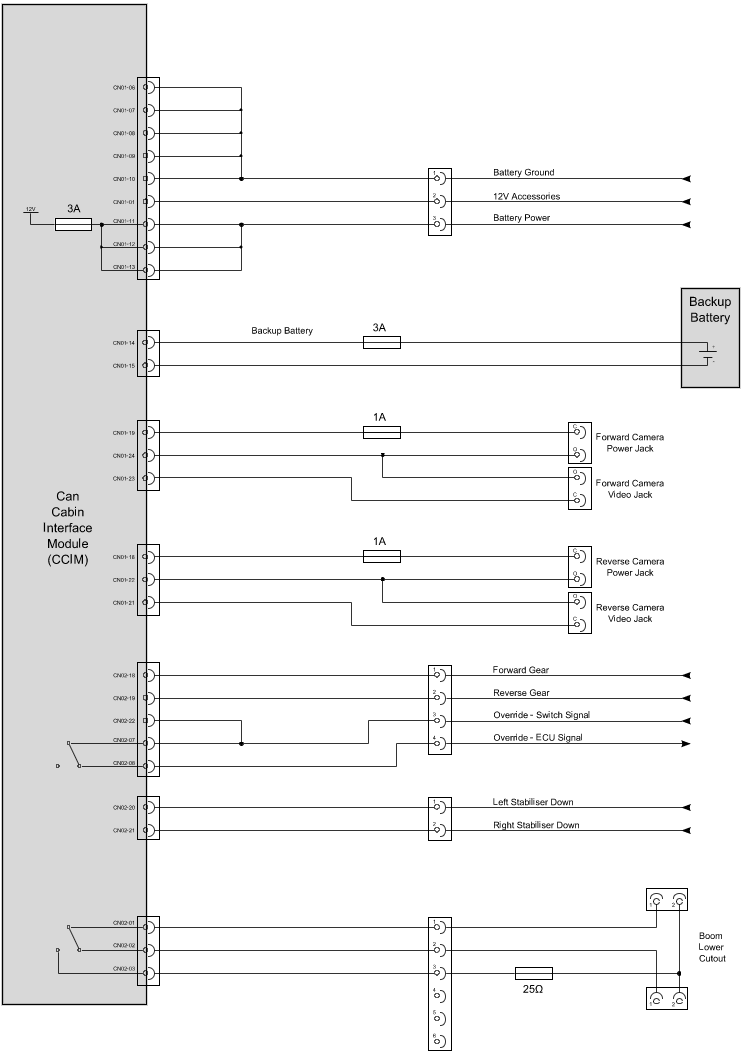

Generic Gen 3 LMS Schematics



CCIM Connections
Connector CN01 = Camera/Power Port
Connector CN02 = I/O Port
