Gen3 - Installation - Installation Outline

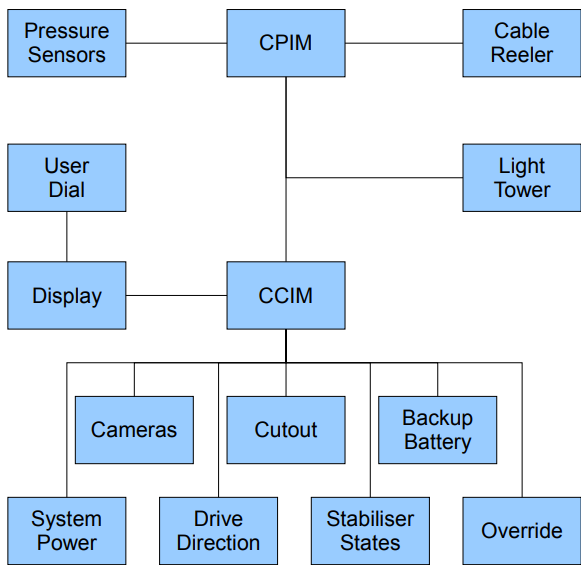

The diagram below outlines how the system components are connected for the Gen3
LMS.
It is recommended to install the components in the following order:
1. The
external sensor components,
2. Then the components inside the cabin
3. Finally the electrical connections.
This is the installation sequence that EQSS installers follow.
