Gen3 - Installation - Proportionally Extending Boom Segments

Gen3 - Installation - Proportionally Extending Boom Segments

Notes

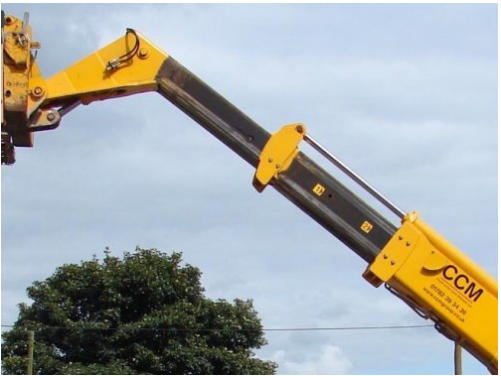

The majority of telehandler booms extend their segments in a proportional manner.
They use a single extension cylinder with each segment chain linked so that each segment extends at the same time. Since each segment extension is linked together the cable reeler only needs to measure the extension of the first segment to measure the complete extension.

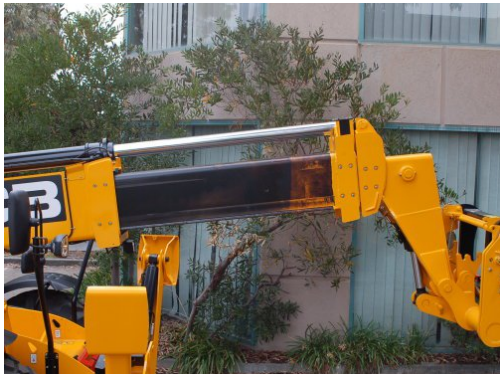

Some telehandler booms extend each segment one at a time, once the first segment has been extended then the next segment starts to extend and so on until the boom is fully extended. Since each segment extends separately from the rest of the segments the entire length of the boom needs to be measured.


Warning
The Gen3 LMS is not compatible with telehandlers that extend the last boom segment first. Since the stow switch is not released, a system fault will occur.
