Gen3_ITC - Attachments - Automatic Recognition Installation

ITC AUTOMATIC TOOL RECOGNITION - Installation Instructions

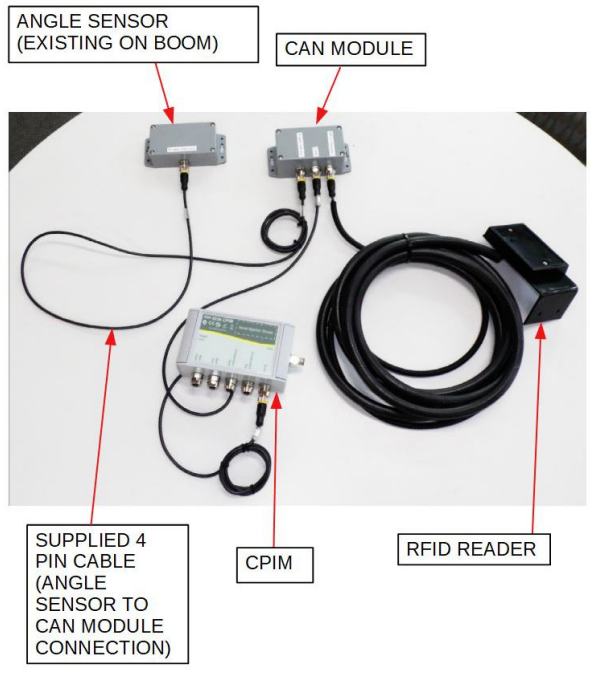

Connection Layout:

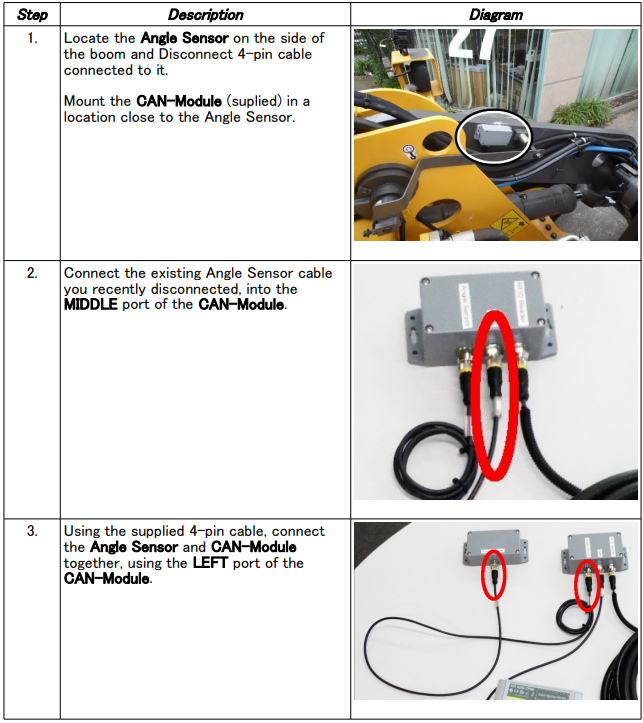

CAN Module Installation:

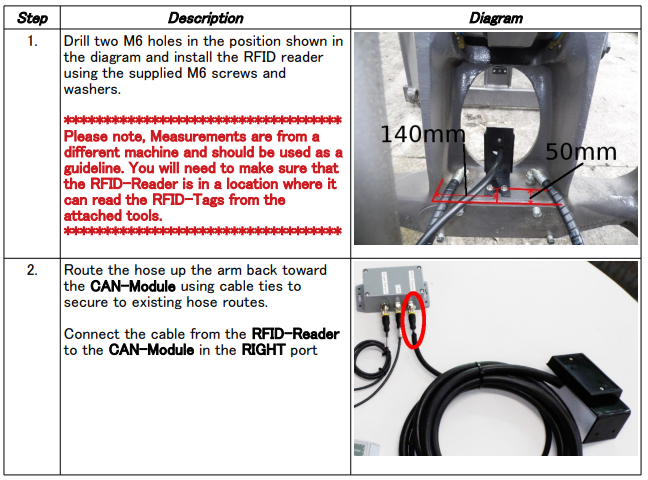

RFID Reader Installation:

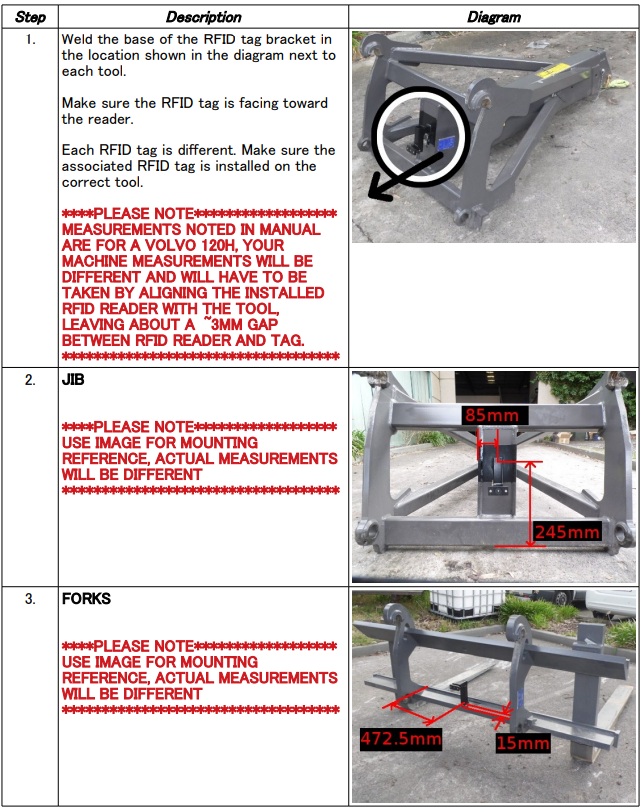

RFID Tag Installation:
