Gen3_ITC - Attachments - Manual Selection

Gen3_ITC - Attachments - Manual Selection

Notes
The attachment selection menu is accessible by pressing the user input control dial to enter the Menu System, then select 'Attachment Selection Menu'

This will display a list of the currently calibrated attachments for this ITC.

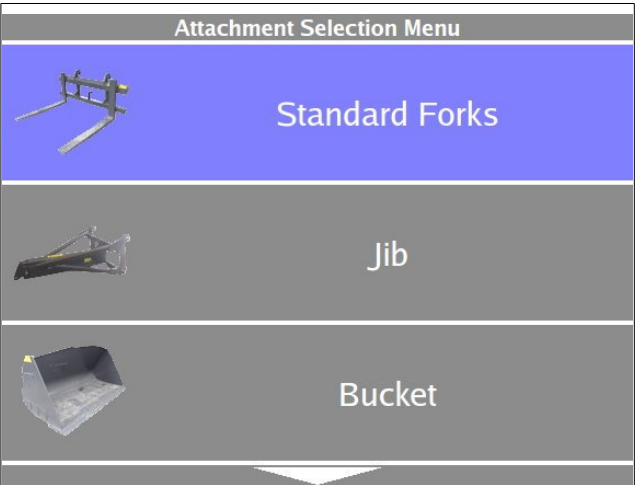

Above: Attachment Selection Menu

Each attachment listed includes both a picture of the attachment for ease of identification and a description which will be shown on the attachment window on the main screen if selected. To select a new attachment scroll through the menu until the desired attachment is highlighted and press the user input dial. This will exit to the main screen and load the configuration for the new attachment. If there are more attachments that can be displayed on a single screen then arrows are displayed at the top or bottom to indicate there are more attachments on other pages.

Info
The operator can only select from attachments that have been enabled, if the attachment is not enabled it will not be shown in the menu.
