Gen3_ITC - Fault Code - All Gen 3 Fault codes
Gen 3 Fault codes are displayed in Red color and are displayed on the Gen 3 operator screen
To further identify the fault (via the Gen 3_ITC Display), enter the Menu System, then select System Faults. This will display a list of the current system fault codes. Select a fault code (via the user navigation buttons) for more information. The information in the table below is also displayed on the system fault information screen (on the display) for the selected fault code.
Many of these fault codes have been further explained in their own individual Tech Docs.

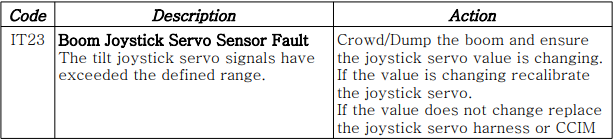

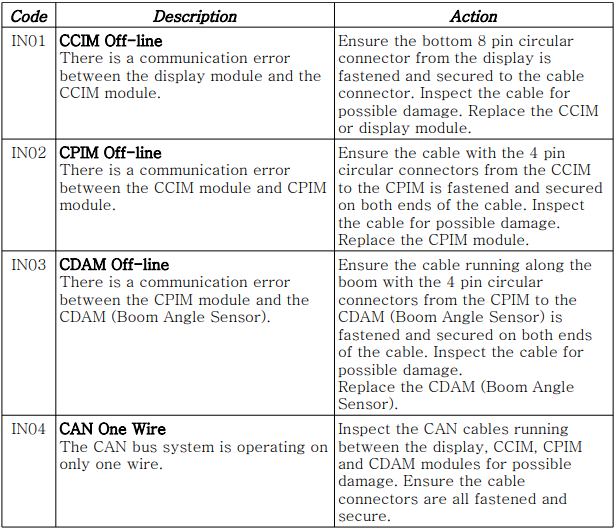

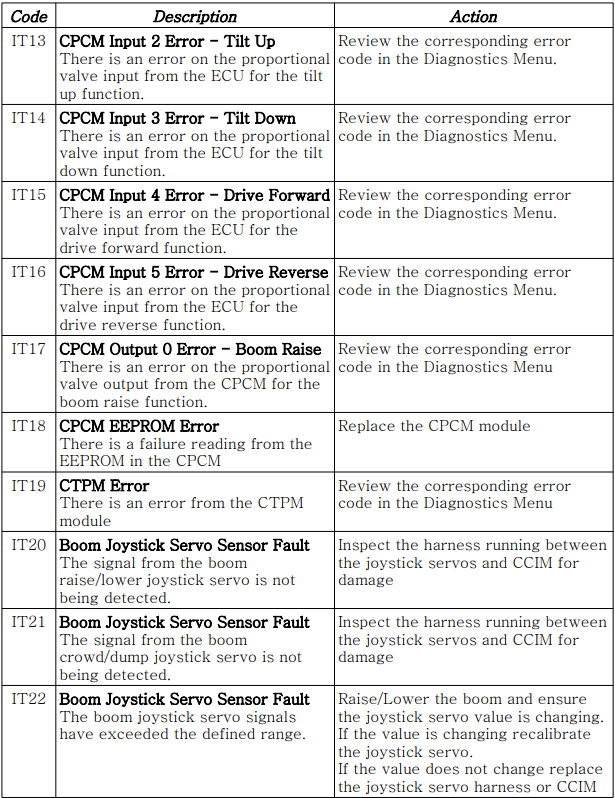

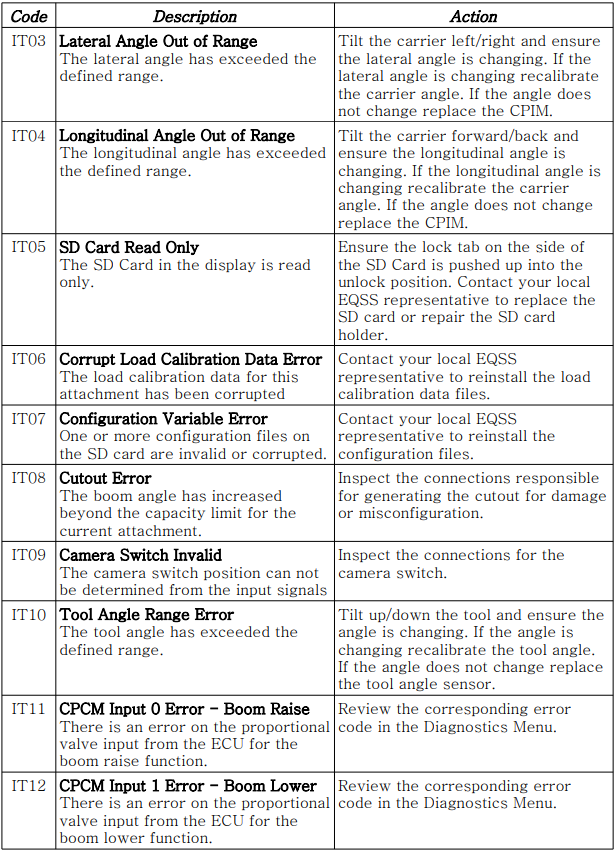

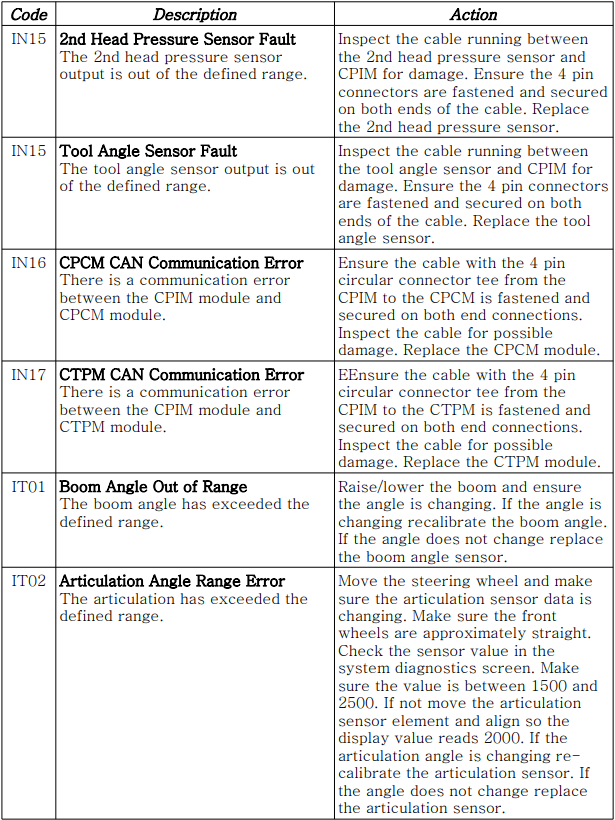

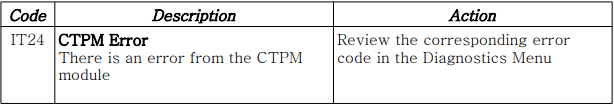

The table below describes the fault codes and actions required to fix the fault.
