Gen3_ITC - Installation - Forward Camera, Harness, Wiring & Plugs

Gen3_ITC - Installation - Forward Camera, Harness, Wiring & Plugs

Notes
The Forward Cameras for the ITC are attached onto the Man Cage using the Camera Enclosures
The camera enclosures are mounted to the man cage through the magnets that are attached to the sides. The magnets can be relocated to either side of the enclosure for maximum adaptability. The Enclosure is as shown below.

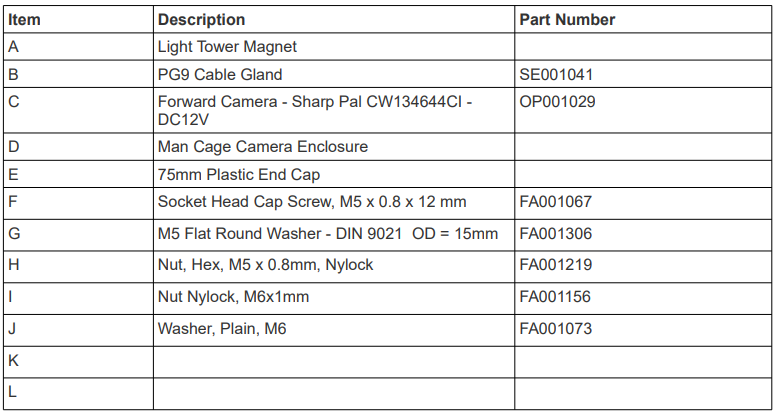

Camera Enclosure



The wiring for the forward cameras are designed with a quick release mechanism to allow the Man Cage to be detach from the ITC without having to individually remove the cameras and the associated cables.

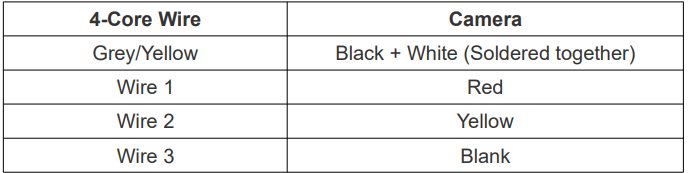

Below: Wiring Pinout for Camera DTM 3M





Below: DTM-3M to INDUSTRY 6-PIN CONNECTOR




Below: DT-6F TO INDUSTRY 6PIN CONNECTOR

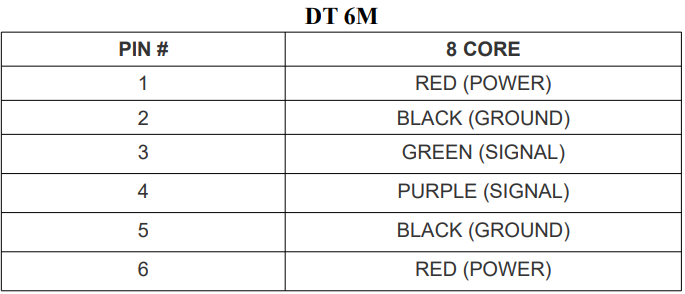

Modifications Required To Existing I/O Harness
