Gen3_ITC - Installation - Caterpillar 962K User Input Control (Navigation Switches)

Gen3_ITC - Installation - Caterpillar 962K User Input Control (Navigation Switches)

Notes

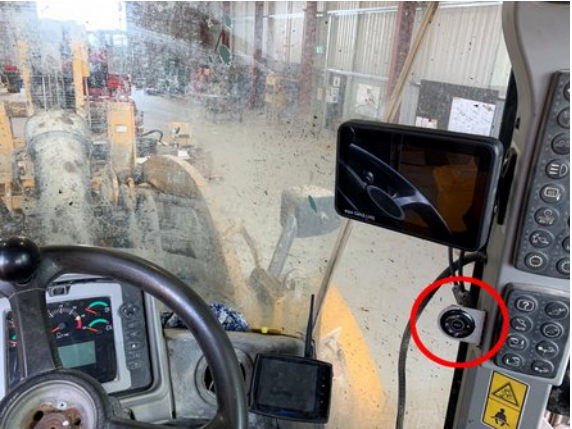

The user input control consists of a 5-way navigation switch mounted in the side console
Installation Steps:
  1. Drill two M4 through-holes for the User Control Bracket in the location on the centre console as shown in the diagram.
  2. Mount the bracket using the supplied M4 screws, washers and nuts.
  3. Feed the wire from the 5 button user control through the bracket and install the user control onto the bracket.
