Gen3_ITC - Installation - Reattach Ferrites Procedure

If the clip-on ferrites on the displays are removed during installation, they will need to be reattached as shown in the procedure below

Attach the two clip-on ferrites at a location of 60 mm and 260 mm from the start of the connector to the start of the ferrite. Do this for both the CCIM and user control cables that plug into the display.

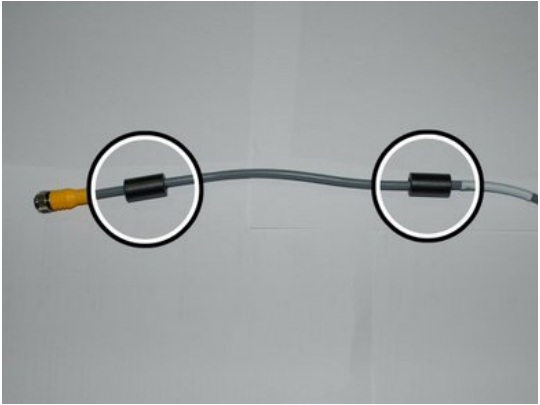

Below: Attached ferrites

If the ferrites are not reinstalled or attached in the specified location the Gen3-LMS kit will not meet the AS/NZS CISPR 22:2006 certification
