Notes
The Gen-3 safety system will engage the hydraulic cutout if the ITC is beyond it's recommended capacity.
The operator is allowed to temporarily override this cutout to allow the boom to be moved back into a safe working region.

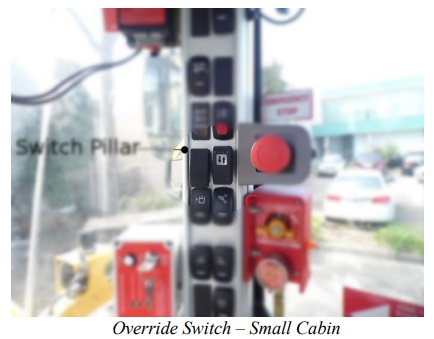

Cutout Override positioning on a Komatsu ITC

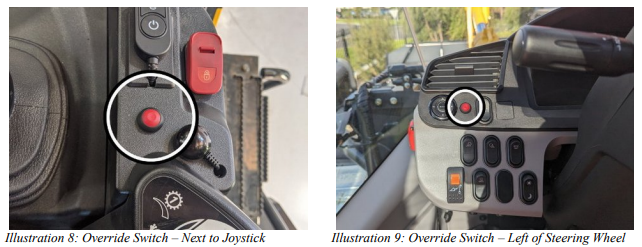

Cutout Override positioning on a Cat ITC


Cutout Override positioning on a Volvo ITC


In order to engage the hydraulic override the operator must hold the switch. This will display the override icon on the screen. The number in the icon is amount of time remaining in seconds until the cutout is re-engaged. Once the number drops to 0 the operator will need to release the switch and then hold again for additional override time.

Info
The default override time is 15 seconds. It can be increased to a maximum of 60 seconds via the configuration
