Gen3_ITC - User - Cutout Override Control

Gen3_ITC - User - Cutout Override Control

Notes
The Gen-3 safety system will engage the hydraulic cutout if the ITC is beyond it's recommended capacity
The operator is allowed to temporarily override this cutout to allow the boom to be moved back into a safe working region.

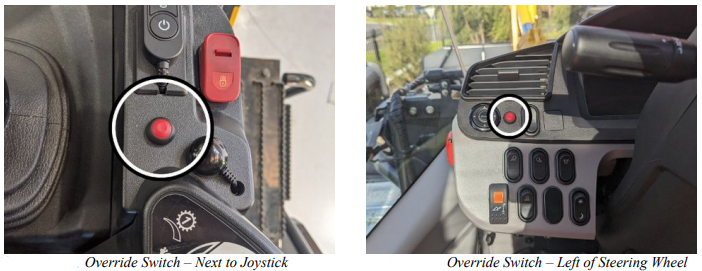

Below: Komatsu Override Switch & Mounting Locations

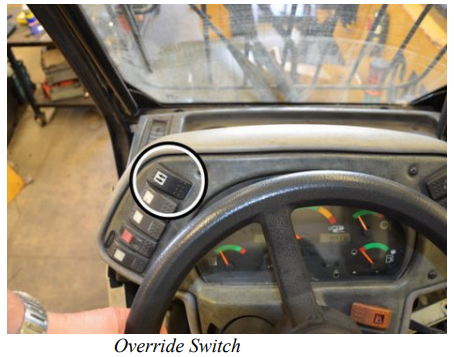

 Below: Cat Override Switch & Mounting Location

Below: Volvo L120H Switch & Mounting Location


In order to engage the hydraulic override the operator must hold the switch. This will display the override icon on the screen. The number in the icon is amount of time remaining in seconds until the cutout is re-engaged. Once the number drops to 0 the operator will need to release the switch and then hold again for additional override time.

Info
The default override time is 15 seconds. It can be increased to a maximum of 60 seconds via the configuration
