Notes
The menu system allows for configuring the Gen-3 system
To enter the menu system, press the user control dial. This will display the main menu. To navigate through the menu options press the arrow buttons on the user control dial. The currently selected option will be highlighted. To select the highlighted option press the 'Enter' button on the user control dial.

To change a menu value item (e.g change the volume):
  1. Highlight the item to be modified and press Enter on the user control dial. The item background will change to the edit colour.
  2. Press the arrow buttons to change the item value.
  3. Press the Enter button again to save the new value.
Main Menu

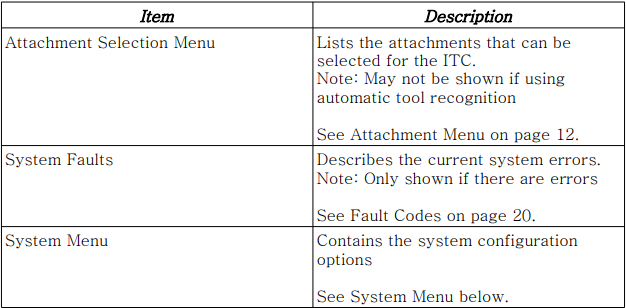

The main menu contains the following:

System Menu

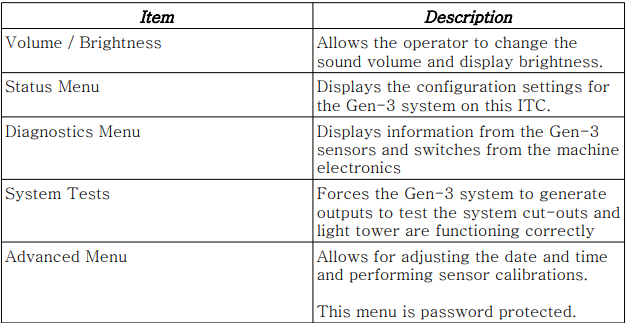

The system menu contains the following:


Info
If operating the machine in a very dark environment adjust the display brightness to the minimum level.
