Gen3_ITC - User - User Input Control
The operator will be required to select different configuration options for the safety system,
such as changing the attachment selection.
This is accomplished by the user input control
switch.
The user input control switch has 3 functions: increment up, increment down and select.
Increment Up – Pressing either the Up or Right buttons performs an increment up action, which may (depending on the current screen) scroll up the user menu or zoom into the rating chart.
Increment Down – Pressing either the Down or Left buttons performs an increment down action, which may either scroll down the user menu or zoom out of the rating chart.
Select – Press the Enter button to perform a select - which is used to either select a menu option or to enter the menu system.
Below are some photo representations of the User Input Controls in different ITC machines:

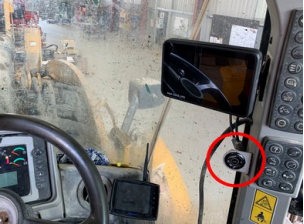

User Input Controls placement in a Komatsu ITC

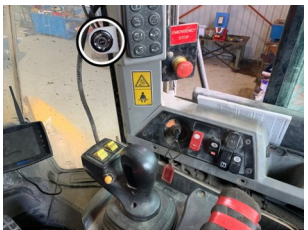

User Input Controls placement in a CAT ITC

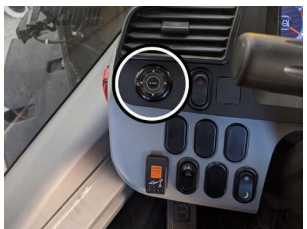

User Input Controls placement in a Caterpillar ITC

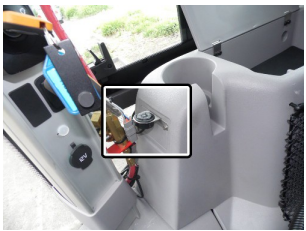

User Input Controls placement in a Volvo ITC
When any of the user input control actions are performed the
display will emit a short notification sound.
