Gen3 - User - Display Brightness & Audio Volume Adjustments

Screen Adjustments are located in the System menu

Display brightness and audio volume is adjusted in the System menu using the 5-Way Navigation Switch

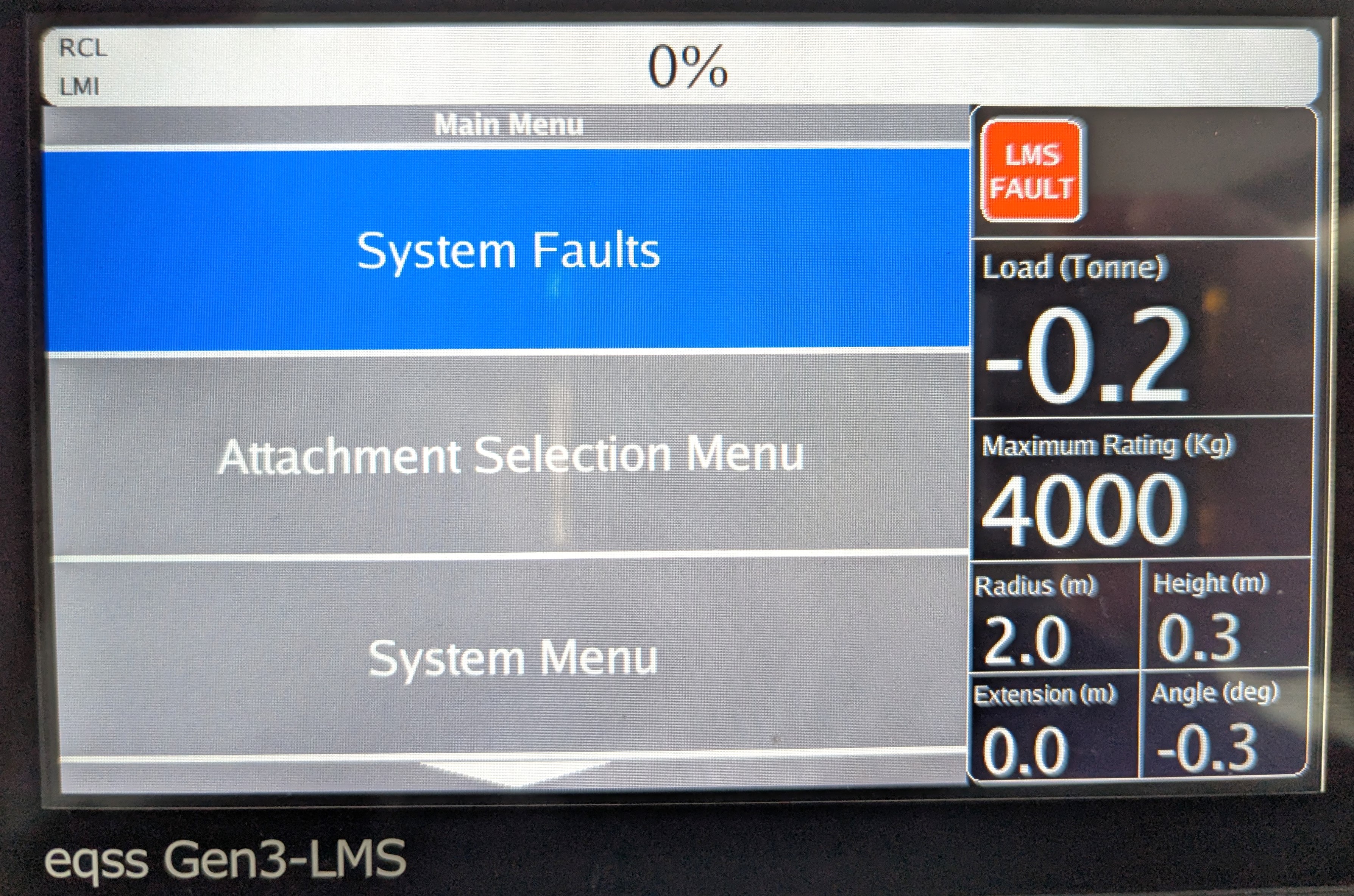

Press the navigation switch 'Enter' button to enter the menu system

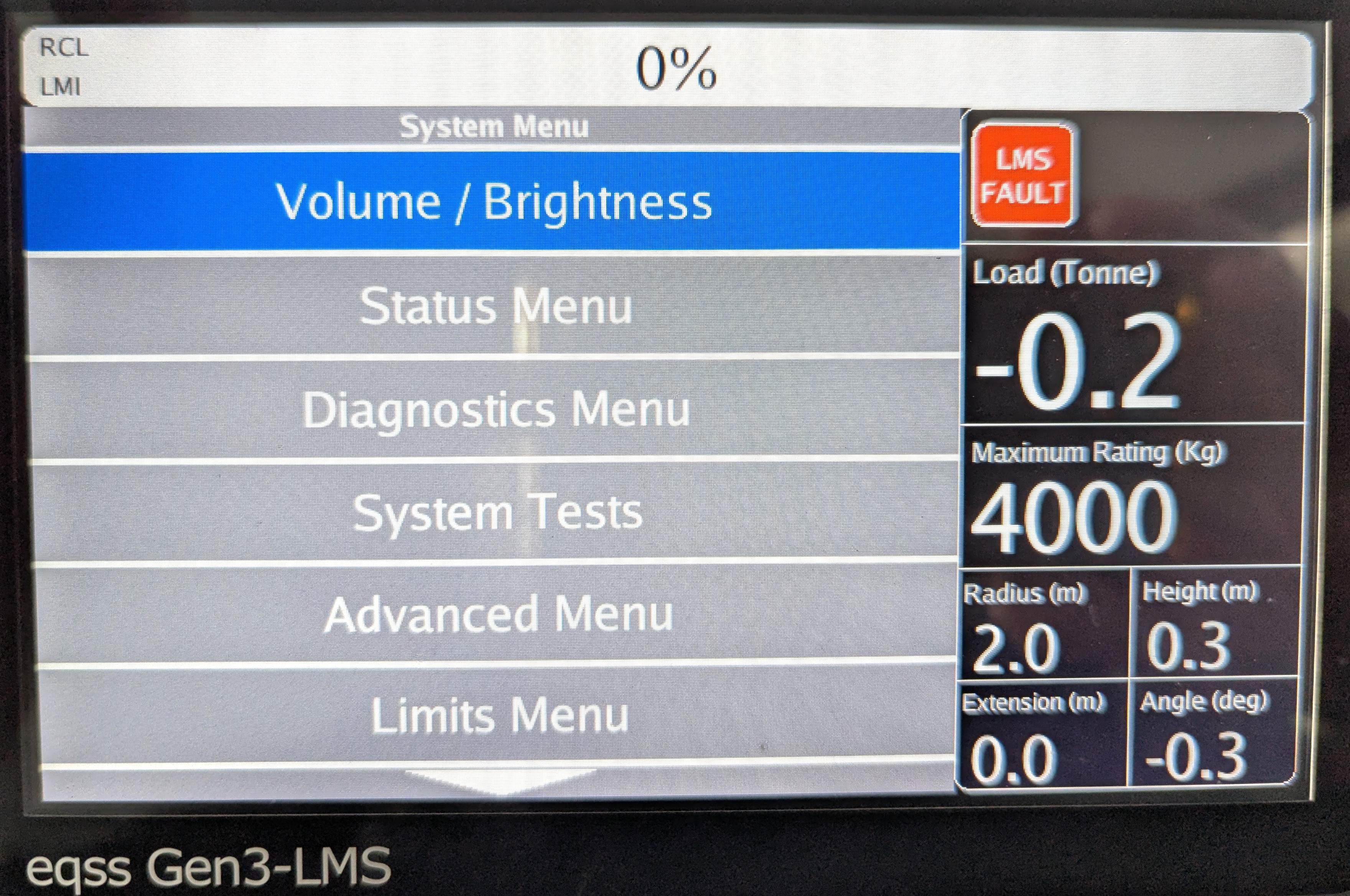

Navigate to the 'System Menu'

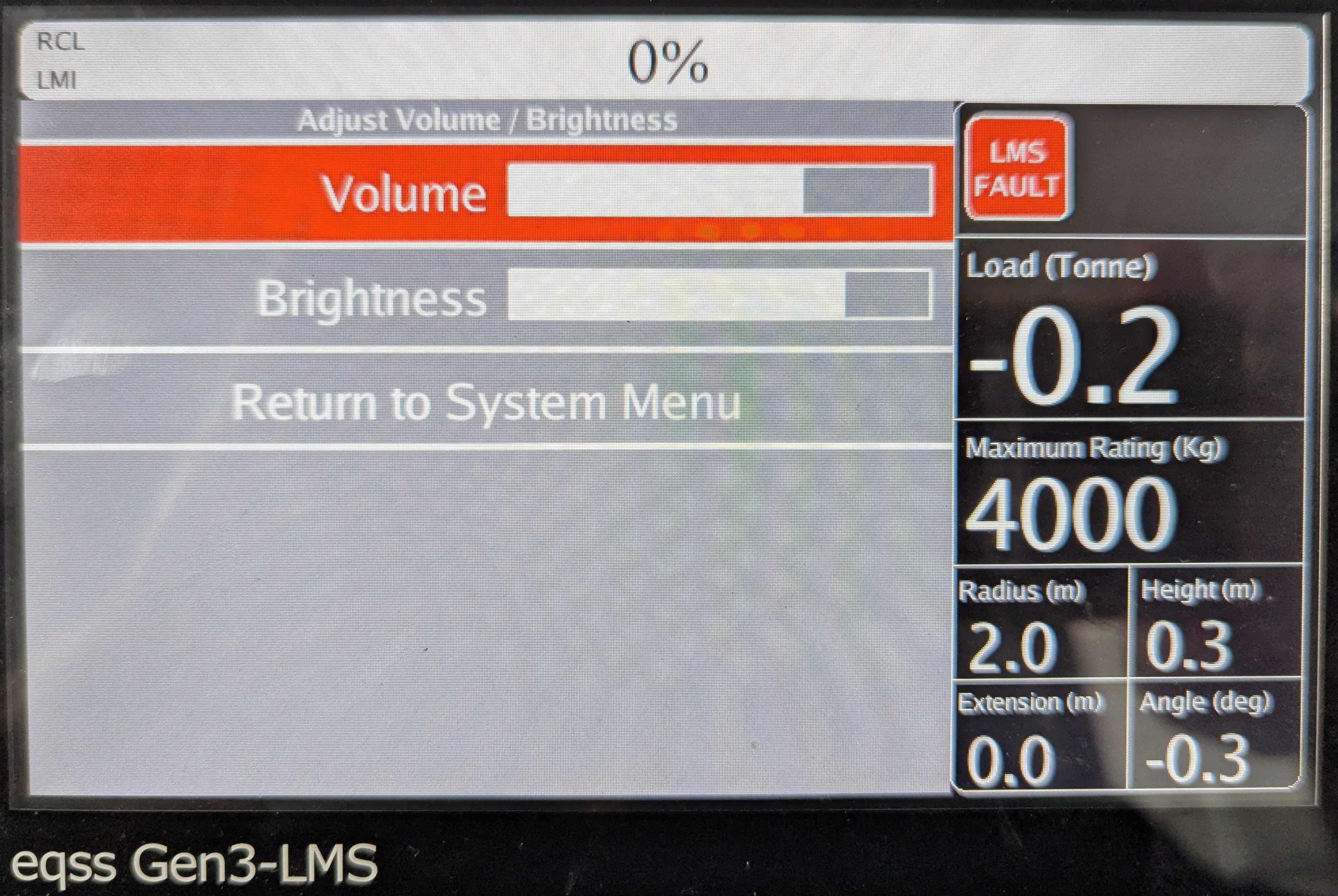

Select the 'Volume' bar (turns orange) and raise/lower the volume.

Deselect the 'Volume' bar

Select the screen 'Brightness' bar (turns orange) and raise/lower the screen  brightness.

Deselect the screen 'Brightness' bar.
